Cable Accessories - Sectional grommet, Panel thick 1.9÷3.2mm, Dcable 7.4÷8.2mm

Prod code: 19821

SR-6P3 PDF

SR-6P3

Price:  0.20 €
VAT:  0.05 €
Final price with tax:  0.24 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer KSS Wiring
Cable accessories type sectional grommet
Panel thickness 1.9...3.2mm
A dimension 15.9mm
Cable external diameter 7.4...8.2mm
D dimension 14.8mm
B dimension 14mm
Wire cross-section shape round

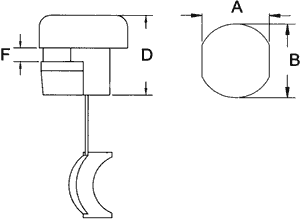

Dimensions  VIEW
Schematic diagram  VIEW

Availability: On stock
