Safety switch hinged, Series FR, NC x2 + NO, IP67, -25÷80°C

Κωδικός: 39375

FR2096-M2 PDF

FR2096-M2

Τιμή χωρίς ΦΠΑ:  26.37 €
Αξία ΦΠΑ:  6.33 €
Τελική με ΦΠΑ:  32.70 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer PIZZATO ELETTRICA
Type of safety switch hinged
Series FR
Contacts configuration NC x2 + NO
IP rating IP67
Operating temperature -25...80°C
Colour black,   red
Body material polymer
Electrical connection M20x1,5
Contacts electrical parameters 24V DC / 6A,   250V AC / 6A
Safety switches features Ø12x24mm shaft
Mechanical durability 1000000 cycles

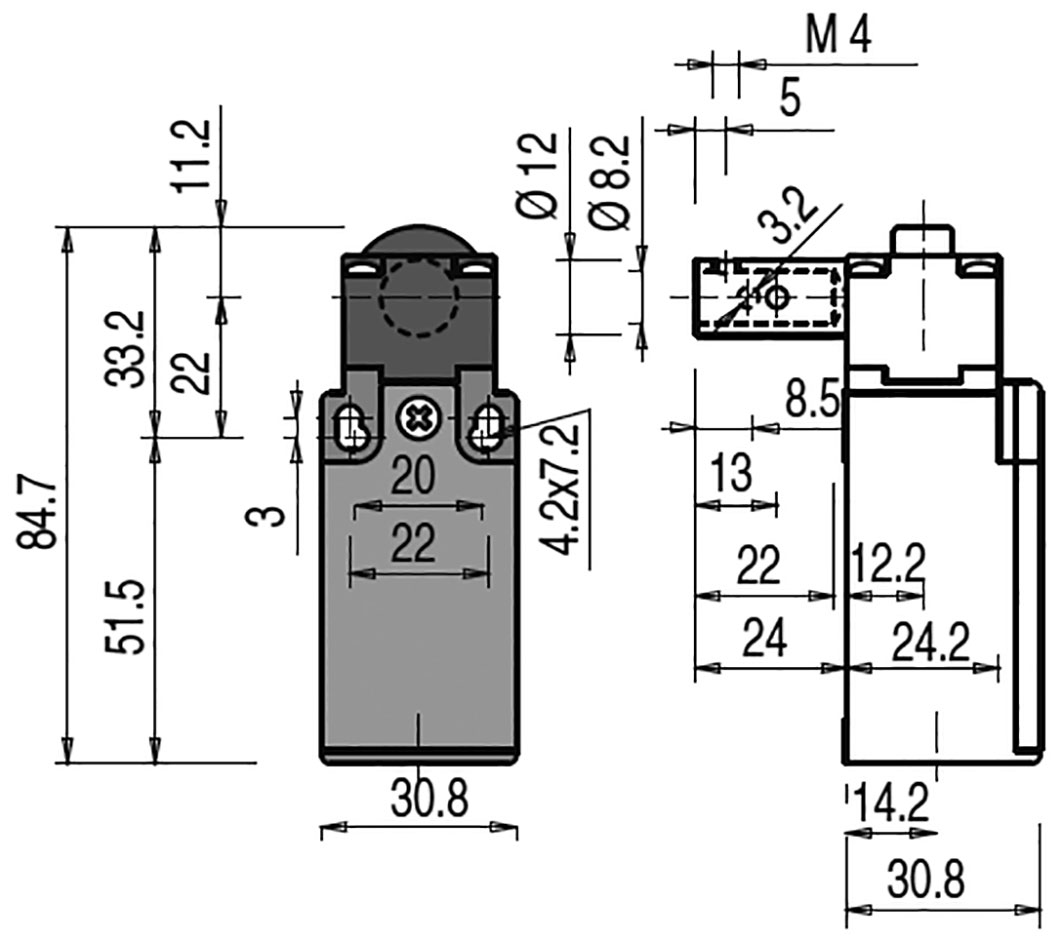

Dimensions  VIEW
Gross weight 124.7 g

Διαθεσιμότητα: Με παραγγελία
