Äéáêüðôçò - ROCKER, SPST, Positions 2, OFF-ON, 15A/250VAC, red, neon lamp, 35mÙ

Prod code: 20122

RSI1013C3RD PDF

RSI1013C3RD

Price:  1.59 €
VAT:  0.38 €
Final price with tax:  1.97 €
Amount:
Usually shipped within 1 business day.
Specifications
Type of switch ROCKER
Contacts configuration SPST
Number of positions 2
Stable positions number 2-position
Switching method OFF-ON
AC contacts rating @R 15A / 250V AC
Key button colour red
Illumination neon lamp
Max. contact resistance: 35mΩ
Body colour black
Operating temperature -30...80°C
Leads 6,3x0,8mm connectors
Electrical life 10000cycles
Mounting hole diameter 30.3x10.6mm
Button marking I-O
Backlight colour red
Shape rectangular

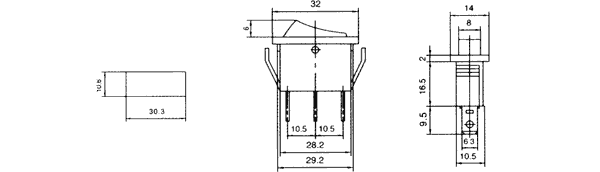

Dimensions  VIEW
Button marking  VIEW
Gross weight 7.067 g

Availability: On stock
