Διακόπτης - ROCKER, SPST, Pos 2, OFF-(ON), 10A/250VAC, black, none, 50mΩ

Κωδικός: 37649

RS1366FBB3 PDF

RS1366FBB3

Τιμή χωρίς ΦΠΑ:  1.26 €
Αξία ΦΠΑ:  0.30 €
Τελική με ΦΠΑ:  1.56 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer SCI
Type of switch ROCKER
Contacts configuration SPST
Number of positions 2
Switching method OFF-(ON)
AC contacts rating @R 10A / 250V AC
Key button colour black
Illumination none
Max. contact resistance: 50mΩ
Body colour black
Body material polyamide
Flammability rating UL94V-2
Operating temperature -20...85°C
Leads 4,8x0,8mm connectors
Panel thickness max. 3mm
Electrical life 6000 cycles
Mounting hole diameter 19.4x13mm
Button marking I-O
Shape rectangular
Related items R13-66A-29
Manufacturer series R13-66-AC
Stable positions number 1

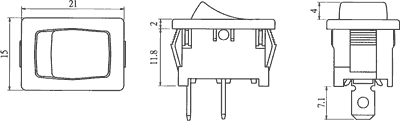

Dimensions  VIEW
Gross weight 3.51 g

Διαθεσιμότητα: Αμεσα
