Specifications |
Type of switch |
ROCKER |
Contacts configuration |
DPST |
Number of positions |
2 |
Switching method |
OFF-ON |
AC contacts rating @R |
15A / 250V AC |
Key button colour |
red |
Illumination |
neon lamp |
Max. contact resistance: |
35mΩ |
Body colour |
black |
Operating temperature |
-30...80°C |
Leads |
6,3x0,8mm connectors |
Electrical life |
10000 cycles |
Mounting hole diameter |
31x22.3mm |
Button marking |
O-I |
Backlight colour |
red |
Related items |
RSC09 |
Button shape |
rectangular |
Height above panel |
9.4mm |
Stable positions number |
2 |

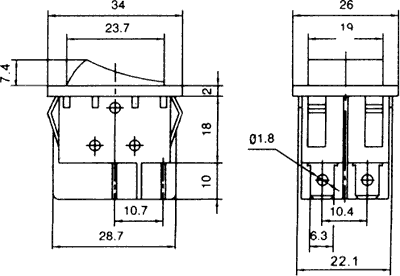

Dimensions |
VIEW |
Panel cutout |
VIEW |
Button marking |
VIEW |
Gross weight |
13.415 g |
|
|
