Äéáêüðôçò - ROCKER, 1-position, SP3T, (ON)-OFF-(ON), 6A/250VAC, black, 35mÙ

Prod code: 28595

RSM1232C0BK PDF

RSM1232C0BK

Price:  0.67 €
VAT:  0.16 €
Final price with tax:  0.83 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer NINIGI
Switch type ROCKER
Stable positions number 1-position
Contacts configuration SP3T
Switching method ON)-OFF-(ON)
AC contacts rating 6 A / 250 VAC
Key button colour black
Max. contact resistance: 35mΩ
Body colour black
Operating temperature 30...80°C
Leads 4.8x0.8mm connectors
Electrical life 10000cycles
Mounting hole diameter 19.2 x 13mm
Number of positions 3
Button marking -O=
Body dimensions 18.8 x 12.9 x 13.4mm
Height above panel 5.8mm

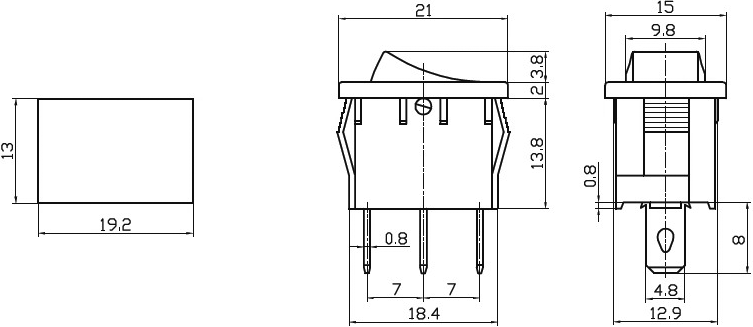

Dimensions  VIEW
Button marking  VIEW

Availability: With order
