Solid state relay - Relay solid state, Ucntrl 9.6÷14.4VDC, 2A, 75÷264VAC, AQ-G

Κωδικός: 41720

semi_eng_aqg.pdf PDF

AQG22112

Τιμή χωρίς ΦΠΑ:  5.94 €
Αξία ΦΠΑ:  1.43 €
Τελική με ΦΠΑ:  7.37 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer PANASONIC
Type of relay solid state
Control voltage 9.6...14.4V DC
Max. operating current 2A
Switched voltage 75...264V AC
Relay series AQ-G
Relay variant 1-phase
Mounting PCB, THT
Operating temperature -30...80°C
Body dimensions 24.5x20.5x4.5mm
Switching method zero voltage switching

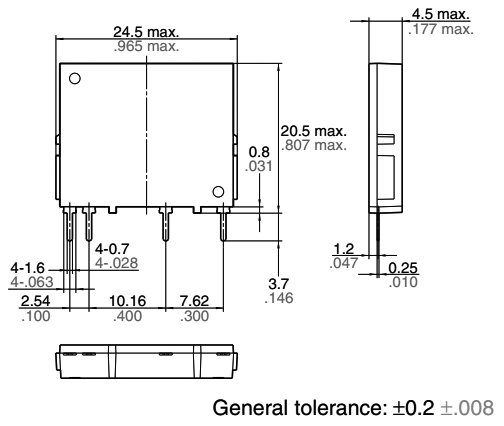

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
