Solid state relay - Relay solid state, Ucntrl 3.5÷32VDC, 12A, 1÷400VDC, Series 1-DC

Prod code: 29316

D4D12 PDF

D4D12

Price:  103.17 €
VAT:  24.76 €
Final price with tax:  127.93 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer CRYDOM
Relay type solid state
Control voltage 3.5...32V DC
Operating current max. 12A
Switched voltage 1...400V DC
Relay variant 1-phase
Relay series 1-DC
Relay features maximal load current with use of suitable heatsink
Body dimensions 44.5 x 57.3 x 22.6mm
Operating temperature 40...100°C
Switching method switching at any time

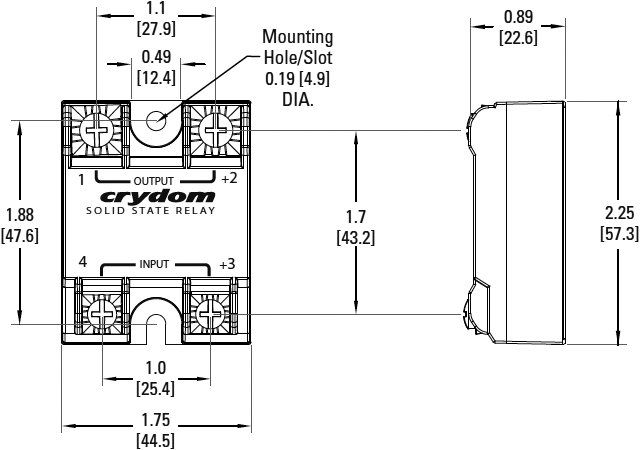

Dimensions  VIEW

Availability: With order
