Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 6VDC, 20A/250VAC, 20A

Prod code: 32088

HF115F-Q/006-1H3 PDF

HF115F-Q/006-1H3

Price:  4.44 €
VAT:  1.07 €
Final price with tax:  5.51 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 6V DC
AC contacts rating @R 20A / 250V AC
DC contacts rating @R 20A / 24V DC
Contact current max. 20A
Switched voltage max. 300V DC,
Relay variant miniature
Mounting PCB
Coil resistance 90Ω
Coil voltage min. 4.2V DC
Coil voltage max. 9V DC
Operate time 15ms
Body dimensions 45x15.7x12.7mm
Release time 8ms
Coil power consumption 400mW
Operating temperature -40...125°C
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 5mm

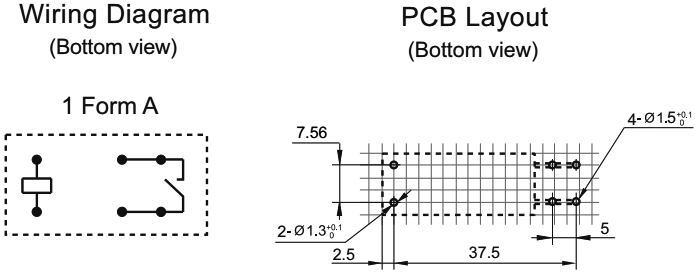

Output configuration  VIEW

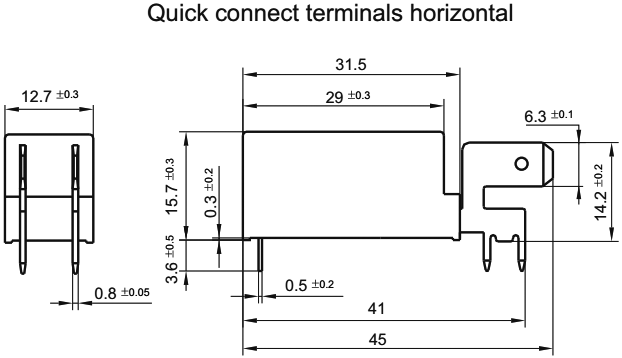

Dimensions  VIEW
Gross weight 15.197 g

Availability: On stock
