Specifications |
Manufacturer |
ZETTLER |
Type of relay |
electromagnetic |
Contacts configuration |
SPST-NO |
Rated coil voltage |
24V DC |
Contact current max. |
40A |
Relay series |
AZ2100 |
Relay variant |
power |
Operating temperature |
-55...85°C |
Mounting |
cables,   PCB |
Coil resistance |
660Ω |
Body dimensions |
32.23x27.4x27.92mm |
Switched voltage |
max. 30V DC,   max. 277V AC |
Coil power consumption |
500mW |
AC contacts rating @R |
40A / 250V AC |
Contact resistance |
50mΩ |
DC contacts rating @R |
20A / 30V DC |
Contact material |
AgCdO |

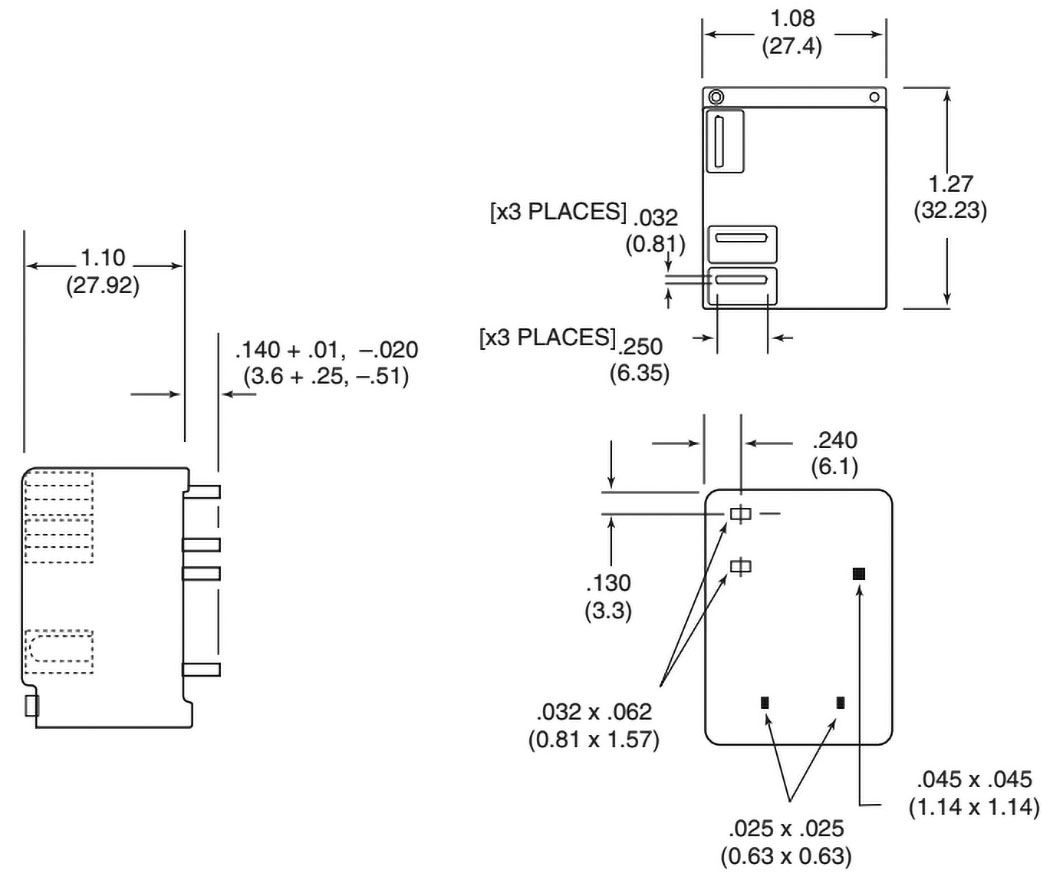

Dimensions |
VIEW |

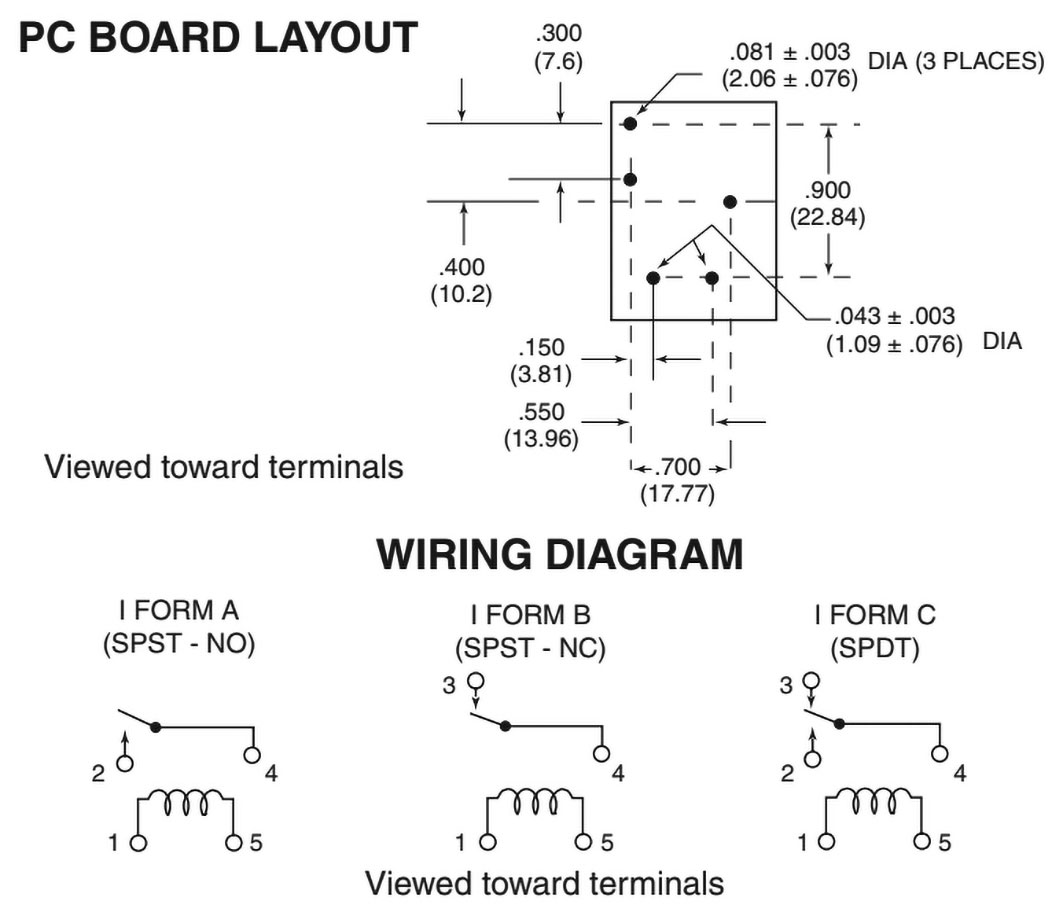

Output configuration |
VIEW |
Gross weight |
35 g |
|
|
