Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPST-NO, Ucoil 24VDC, 16A/250VAC, 1.44kΩ

Κωδικός: 26175

RT334024 PDF

RT334024

Τιμή χωρίς ΦΠΑ:  3.01 €
Αξία ΦΠΑ:  0.72 €
Τελική με ΦΠΑ:  3.73 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating 16 A / 250 VAC
DC contacts rating 16 A / 24 VDC
Contact current max. 16A
Switched voltage max 400V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 1.44kΩ
Coil voltage min. 16.8V DC
Operate time 7ms
Body dimensions 29 x 15.7 x 12.7mm
Release time 3ms
Coil power consumption 400mW
Sealing IP40
Mechanical durability 30000000cycles
Operating temperature 40...70°C
Weight 14g
Relay series RT1
Switching capacity 3kVA
Contact material AgNi
Terminal pitch 5mm
Coil current 16.7mA
Number of pins 6
Height 15.7mm
Max surge current 30A

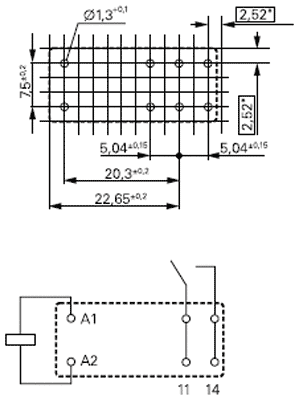

Dimensions  VIEW
Output configuration  VIEW

Διαθεσιμότητα: Με παραγγελία
