Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, Icontacts max 10A

Prod code: 40581

ALQ-DTE.pdf PDF

ALQ312

Price:  2.33 €
VAT:  0.56 €
Final price with tax:  2.89 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer PANASONIC
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Contact current max. 10A
AC contacts rating @R(at resistive load) 5A / 250V AC
DC contacts rating @R(at resistive load) 5A / 30V DC
Switched voltage max. 30V DC, max. 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 720Ù
Coil voltage min. 9V DC
Body dimensions 20x10x15.6mm
Coil power consumption 400mW
Operating temperature -40...70°C
Relay series LQ
Contact material AgNi
Coil current 16.7mA

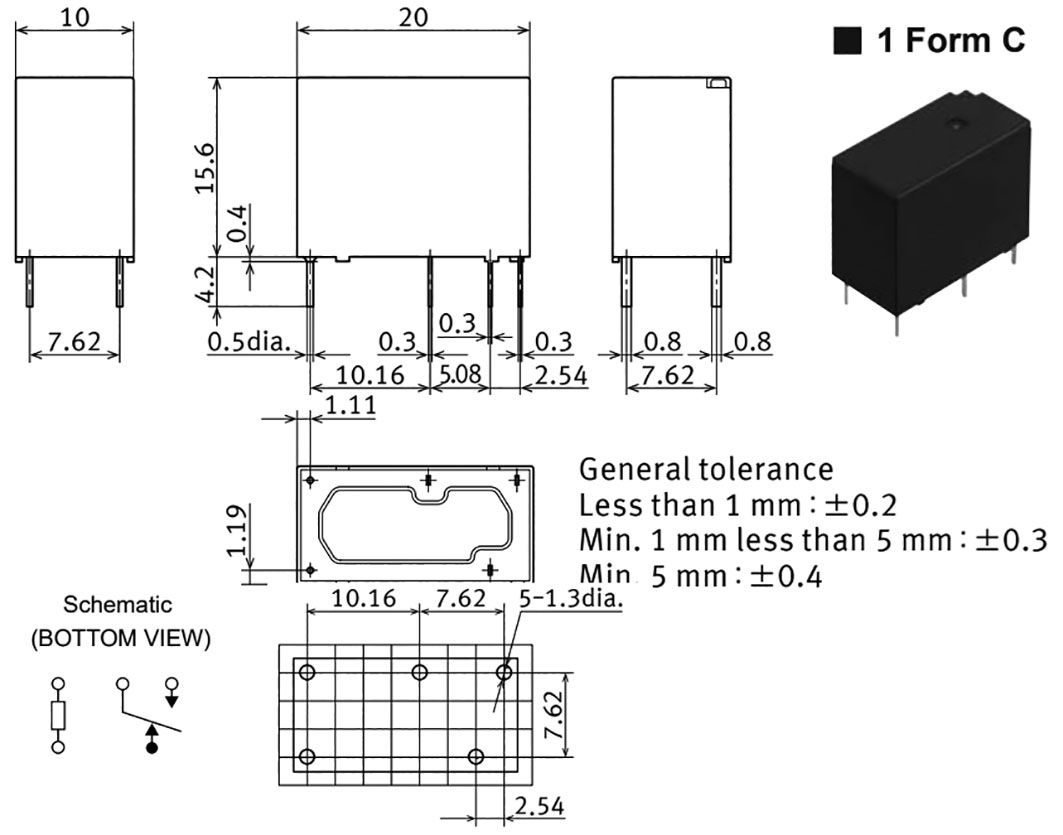

Dimensions  VIEW

Availability: On stock
