Specifications |
Manufacturer |
HONGFA RELAY |
Type of relay |
electromagnetic |
Contacts configuration |
SPST-NO |
Rated coil voltage |
12V DC |
Contact current max. |
60A |
DC contacts rating @R |
45A / 12V DC |
Relay variant |
automotive |
Coil voltage min. |
6.8V DC |
Coil voltage max. |
14.3V DC |
Coil resistance |
90Ω |
Contact material |
AgSnO2 |
Operating temperature |
-40...125°C |
Body dimensions |
22x26.5x22.3mm |
Mounting |
PCB |
Coil power consumption |
1.6W |
Switched voltage |
max. 75V DC |

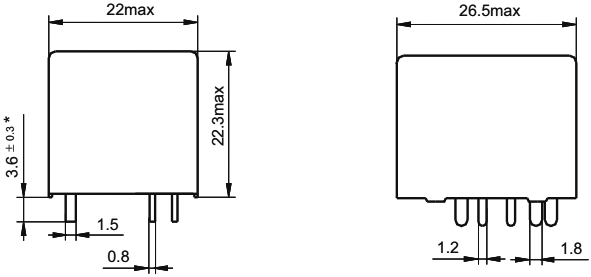

Dimensions |
VIEW |

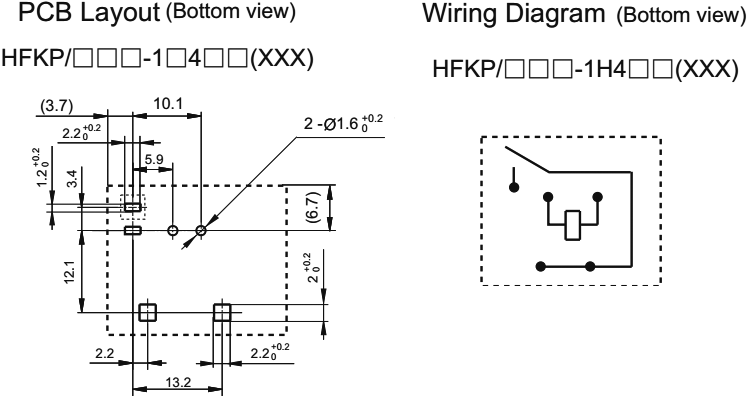

Output configuration |
VIEW |
Gross weight |
21.59 g |
|
|
