Specifications |
Manufacturer |
TE Connectivity |
Type of relay |
electromagnetic |
Contacts configuration |
SPST-NO |
Rated coil voltage |
12V DC |
Contact current max. |
30A |
Coil voltage min. |
9V DC |
Relay series |
T9A |
Relay variant |
power |
Operating temperature |
-55...85°C |
Mounting |
PCB |
Coil resistance |
144Ω |
Body dimensions |
32.5x27.4x27.9mm |
Switched voltage |
max. 28V DC,   max. 277V AC |
Coil power consumption |
1W |
AC contacts rating @R |
30A / 240V AC |
Contact resistance |
75mΩ |
DC contacts rating @R |
10A / 28V DC |
Leads |
6,35x0,8mm connectors,   for PCB |
Contact material |
AgCdO |
Mechanical durability |
10000000 cycles |

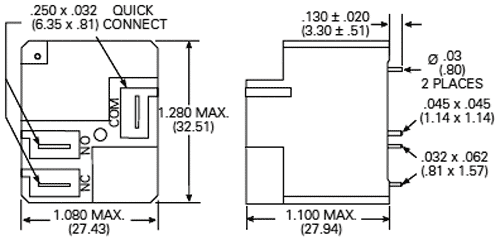

Dimensions |
VIEW |
Gross weight |
29.4 g |
|
|
