Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 25A, automotive

Prod code: 25387

FRC7A-S-DC12V PDF

FRC7A-S-DC12V

Price:  2.17 €
VAT:  0.52 €
Final price with tax:  2.70 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer FORWARD INDUSTRIAL CO.
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Contact current max. 25A
DC contacts rating 20 A / 14 VDC
Relay variant automotive
Coil resistance 120Ω
Switched voltage max 14V DC
Operating temperature 40...85°C
Relay series FRC7
Body dimensions 15.5 x 23 x 26mm
Mounting socket
Coil power consumption 1.2W
Mechanical durability 10000000cycles
Coil current 100mA
Weight 18.5g
Contact resistance 50mΩ
Leads 4.8x0.8mm connectors, 6.4x0.8mm connectors
Operate time 10ms
Release time 7ms
Electrical life 100000cycles

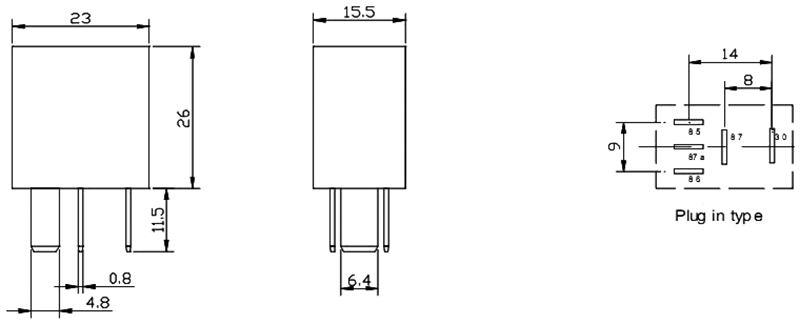

Dimensions  VIEW
Output configuration  VIEW

Availability: On stock
