Specifications |
| Manufacturer |
RELPOL |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
12V DC |
| AC contacts rating @R |
16A / 250V AC |
| DC contacts rating @R |
16A / 24V DC |
| Contact current max. |
16A |
| Switched voltage |
max. 250V DC, max. 440V AC |
| Relay variant |
miniature |
| Mounting |
PCB |
| Coil resistance |
360Ω |
| Coil voltage min. |
8.4V DC |
| Coil voltage max. |
30.6V DC |
| Operate time |
8ms |

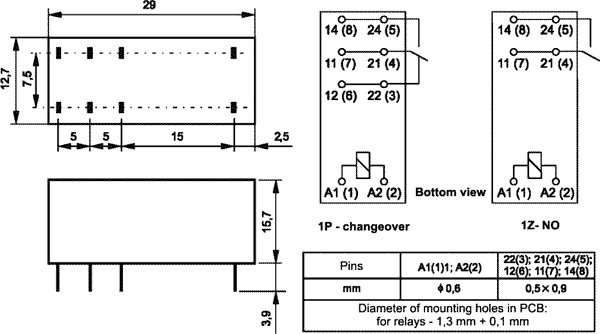

| Body dimensions |
29x12.7x15.7mm |
| Release time |
3ms |
| Coil power consumption |
480mW |
| IP rating |
IP67 |
| Operating temperature |
-40...85°C |
| Relay series |
RM85 |
| Contact resistance |
100mΩ |
| Contact material |
AgSnO2 |
| Terminal pitch |
5mm |
| Related items |
GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80 |
| Body colour |
white |
| Max surge current |
30A |
| Current rating |
16A |
| Output configuration |
 VIEW |
| Gross weight |
13.02 g |
| |
|
