Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 16A/250VAC, 16A

Κωδικός: 36883

RFH34012

Τιμή χωρίς ΦΠΑ:  6.39 €
Αξία ΦΠΑ:  1.53 €
Τελική με ΦΠΑ:  7.92 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 16A / 250V AC
Contact current max. 16A
Switched voltage max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Body dimensions 40.5x12.7x16mm
Coil power consumption 400mW
Operating temperature -40...105°C
Relay series RF
Contact material AgNi 90/10

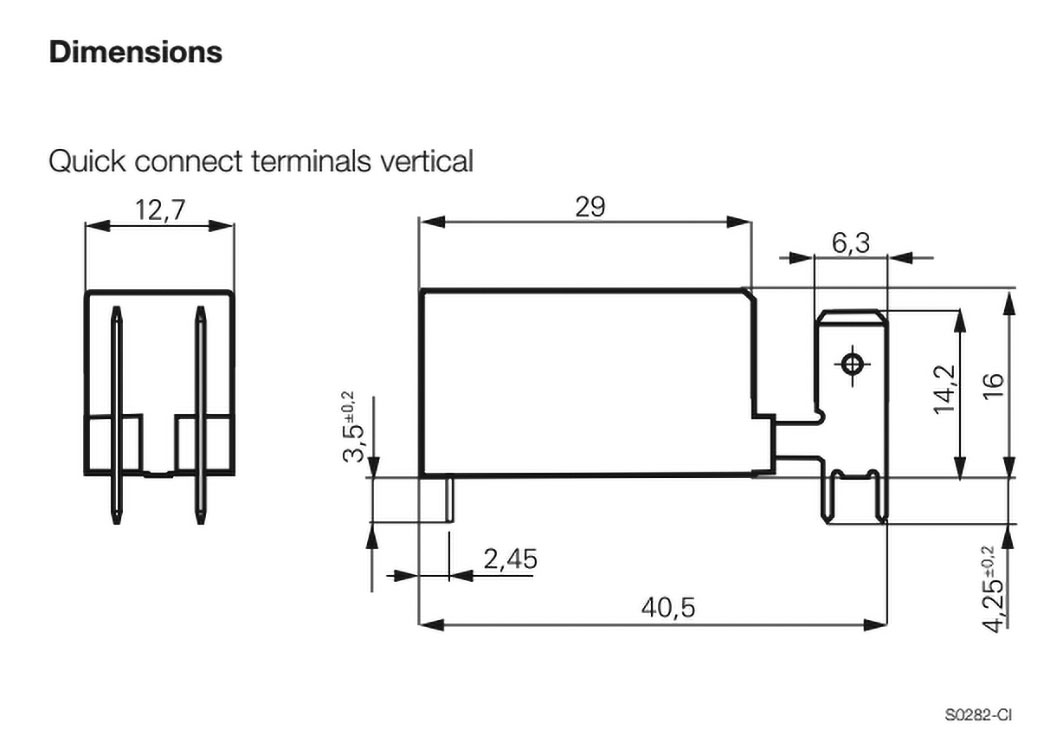

Dimensions  VIEW

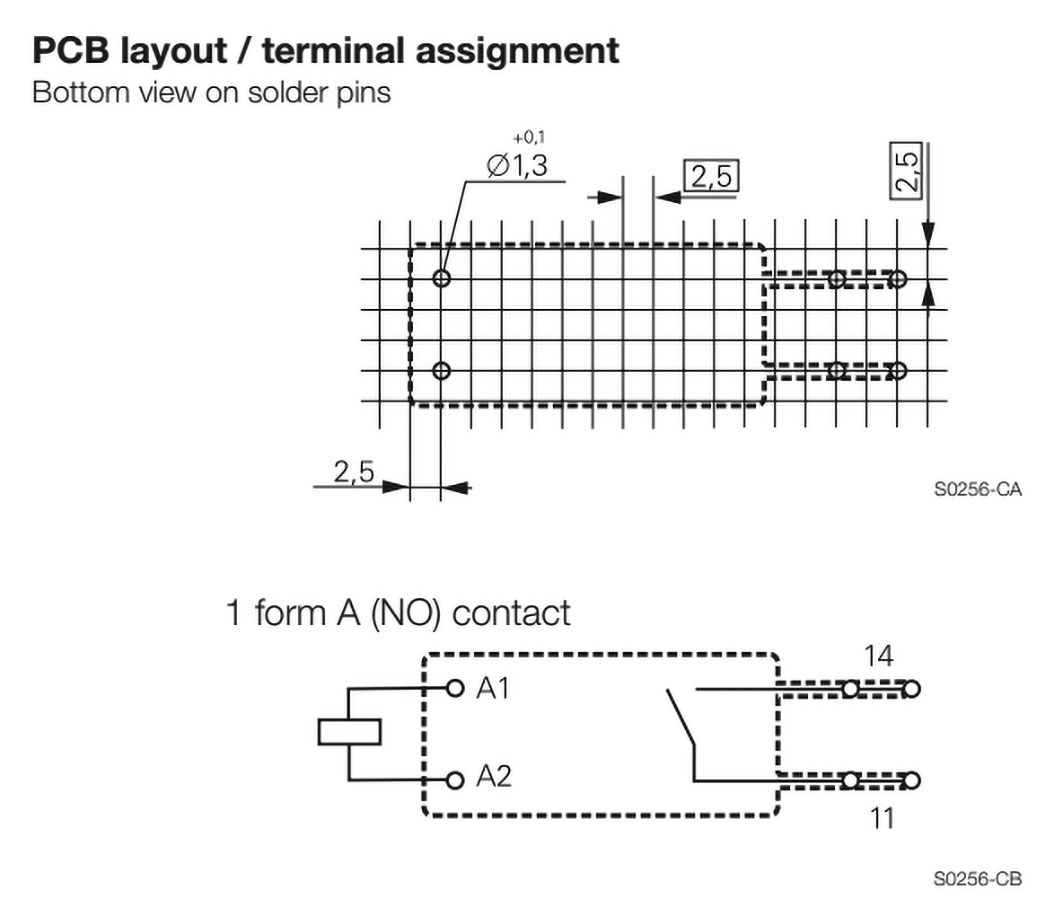

Output configuration  VIEW
Gross weight 14.6 g

Διαθεσιμότητα: Με παραγγελία
