Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPDT, Ucoil 9VDC, 10A/250VAC, 10A/30VDC

Κωδικός: 22051

36.11.9.009.4011 PDF

36.11.9.009.4011

Τιμή χωρίς ΦΠΑ:  2.72 €
Αξία ΦΠΑ:  0.65 €
Τελική με ΦΠΑ:  3.37 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer FINDER
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 9V DC
AC contacts rating 10 A / 250 VAC
DC contacts rating 10 A / 30 VDC
Contact current max. 15A
Switched voltage max 250V AC, max 220V DC
Relay variant miniature
Mounting PCB
Coil resistance 225Ω
Coil voltage min. 6.7V DC
Coil voltage max. 11.7V DC
Body dimensions 19 x 15.5 x 15.5mm
Coil power consumption 400mW
Operating temperature 40...85°C
Relay series 36.11
Contact material AgSnO2
Terminal pitch 2mm

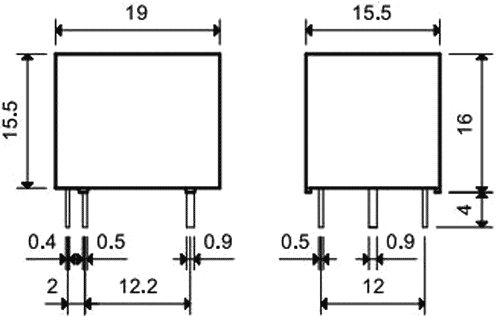

Dimensions  VIEW

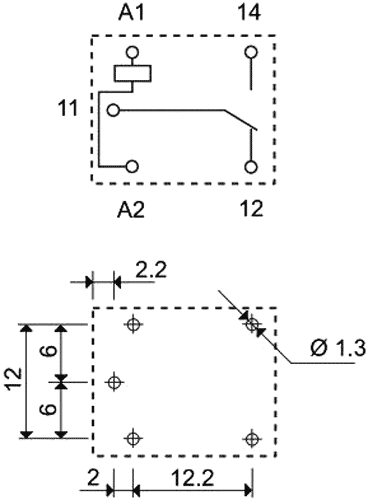

Leads  VIEW

Διαθεσιμότητα: Με παραγγελία
