Relays PCB - Relay electromagnetic, SPDT, Ucoil 5VDC, 8A/250VAC, 8A/28VDC, 10A

Prod code: 35259
RM12N3011351005 PDF

RM12N3011351005
Price:  2.84 €
VAT:  0.68 €
Final price with tax:  3.52 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 5V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 28V DC
Contact current max. 10A
Switched voltage max. 30V DC,
Relay variant miniature
Mounting PCB
Coil resistance 113Ω
Coil voltage min. 3.5V DC
Coil voltage max. 6.5V DC
Operate time 10ms
Body dimensions 28.7x10.3x12.7mm
Release time 5ms
Coil power consumption 220mW
IP rating IP67
Mechanical durability 100000000cycles
Operating temperature -40...85°C
Weight 8g
Relay series RM12N
Contact resistance 100mΩ
Electrical life 100000cycles
Contact material AgSnO2
Terminal pitch 7.62mm

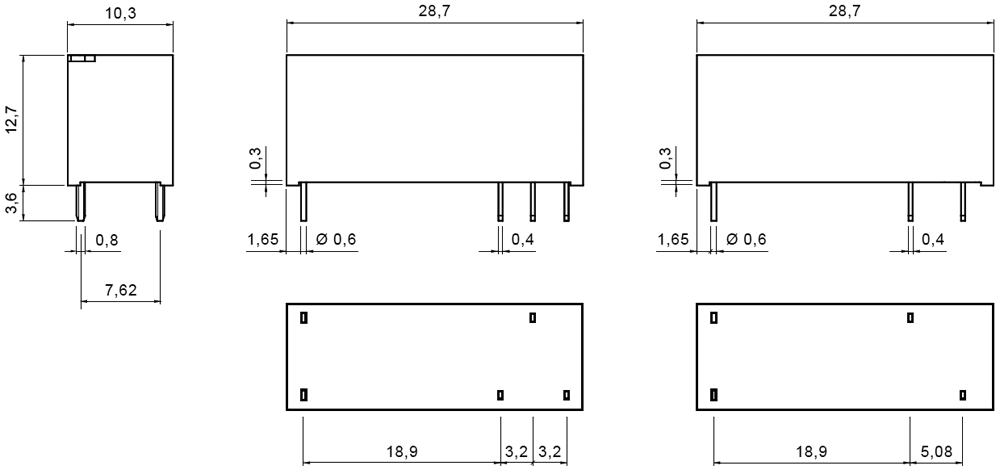

Dimensions  VIEW

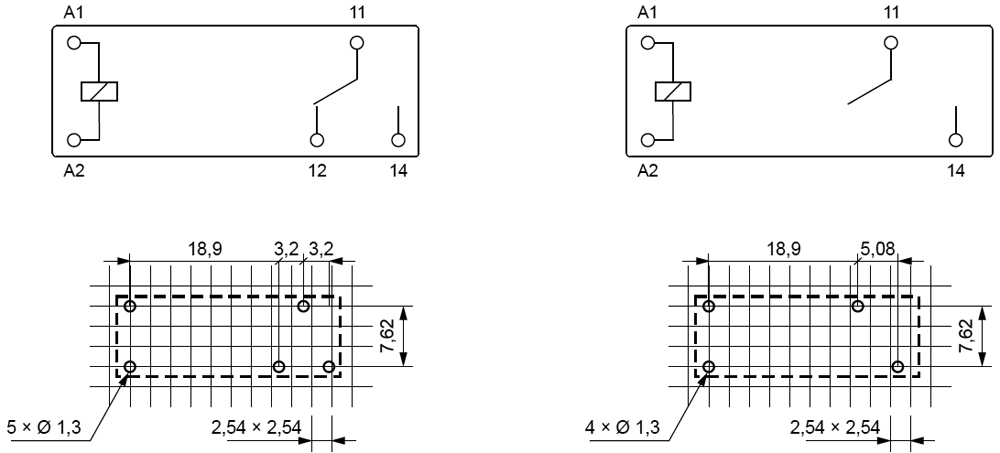

Leads  VIEW
Gross weight 8.41 g

Availability: On stock
