Ηλεκτρονόμος πλακέτας - Relay electromagnetic SPDT Ucoil 48VDC 16A/250VAC 16A/30VDC

Κωδικός: 15507

LMR1H-48D

Τιμή χωρίς ΦΠΑ:  2.77 €
Αξία ΦΠΑ:  0.66 €
Τελική με ΦΠΑ:  3.43 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer RAYEX ELECTRONIC
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 48V DC
AC contacts rating 16 A / 250 VAC
DC contacts rating 16 A / 30 VDC
Contact current max. 16A
Switched voltage max 30V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 4.4kΩ
Operate time 15ms
Body dimensions 29 x 12.5 x 15.5mm
Release time 10ms
Coil power consumption 530mW
Operating temperature 40...80°C
Relay series LMR1
Contact resistance 100mΩ
Contact material AgCdO
Terminal pitch 5mm

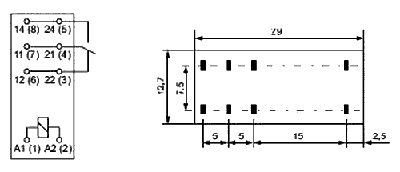

Output configuration  VIEW

Διαθεσιμότητα: Με παραγγελία
