Specifications |
| Manufacturer |
TE Connectivity |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPDT |
| Rated coil voltage |
48V DC |
| AC contacts rating @R |
16A / 250V AC |
| DC contacts rating @R |
16A / 24V DC |
| Contact current max. |
16A |
| Switched voltage |
max. 300V DC, max. 400V AC |
| Relay variant |
miniature |
| Mounting |
THT |
| Coil resistance |
5.52kΩ |
| Coil voltage min. |
33.6V DC |
| Body dimensions |
29x15.7x12.7mm |
| Coil power consumption |
417mW |
| IP rating |
IP40 |
| Mechanical durability |
30000000 cycles |
| Operating temperature |
-40...70°C |
| Weight |
14g |
| Relay series |
RT/5 |
| Switching capacity |
3kVA |
| Contact material |
AgNi |
| Terminal pitch |
5mm |
| Height |
15.7mm |
| Number of pins |
8 |
| Max surge current |
25A |

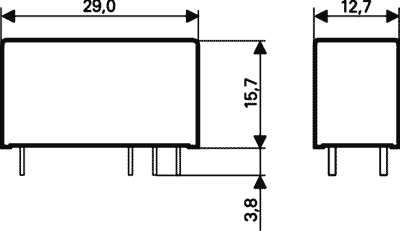

| Dimensions |
 VIEW |

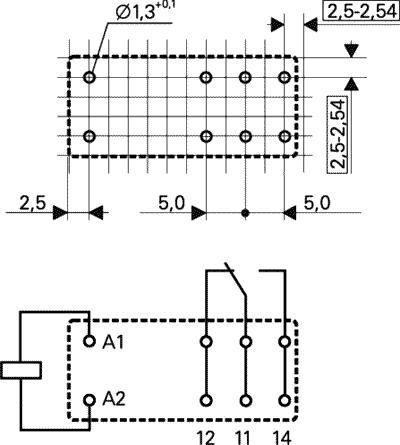

| Output configuration |
VIEW |
| Gross weight |
13.03 g |
| |
|
