Relays PCB - Relay electromagnetic, SPDT, Ucoil 3VDC, 0.5A/125VAC, 1A/24VDC

Prod code: 20443
G5V1-3 PDF

G5V1-3
Price:  3.04 €
VAT:  0.73 €
Final price with tax:  3.77 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 3V DC
AC contacts rating 0.5 A / 125 VAC
DC contacts rating 1 A / 24 VDC
Contact current max. 1A
Switched voltage max 125V AC, max 60V DC
Relay variant subminiature
Mounting PCB
Coil resistance 60Ω
Body dimensions 12.5 x 7.5 x 10mm
Coil power consumption 150mW
Operating temperature 30...70°C
Relay series G5V-1
Contact resistance 100mΩ
Terminal pitch 2.54mm
Coil current 50mA

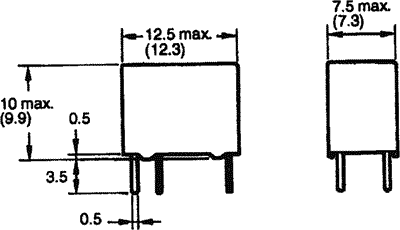

Dimensions  VIEW

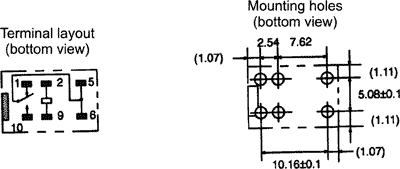

Output configuration  VIEW

Availability: On stock
