Ηλεκτρονόμος πλακέτας - Relay electromagnetic, SPDT, Ucoil 24VDC, 12A/250VAC, 12A/24VDC

Κωδικός: 31575

RP418024 PDF

RP418024

Τιμή χωρίς ΦΠΑ:  5.08 €
Αξία ΦΠΑ:  1.22 €
Τελική με ΦΠΑ:  6.30 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating 12 A / 250 VAC
DC contacts rating 12 A / 24 VDC
Contact current max. 12A
Switched voltage max 440V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 1100Ω
Operate time 8ms
Body dimensions 29 x 12.6 x 25.5mm
Release time 2ms
Coil power consumption 500mW
IP rating IP40
Mechanical durability 30000000cycles
Operating temperature 40...70°C
Weight 18g
Relay series RPII/1
Switching capacity 4kVA
Contact material AgCdO
Terminal pitch 3.5mm
Coil current 21.8mA

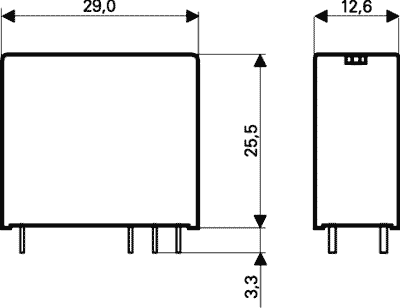

Dimensions  VIEW

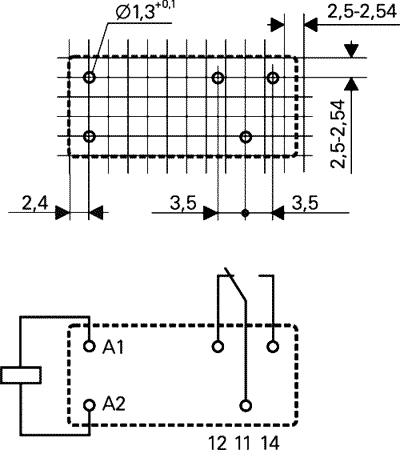

Output configuration  VIEW

Διαθεσιμότητα: Με παραγγελία
