Relays PCB - Relay electromagnetic, SPDT, Ucoil 24VDC, 10A/250VAC, 10A/30VDC

Prod code: 29010

G2R-1-SND-24DC PDF

G2R-1-SND-24DC

Price:  9.30 €
VAT:  2.23 €
Final price with tax:  11.53 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating 10 A / 250 VAC
DC contacts rating 10 A / 30 VDC
Contact current max. 10A
Switched voltage max 125V DC, max 380V AC
Relay variant miniature, industrial
Mounting socket
Coil resistance 1.1kΩ
Operate time 15ms
Body dimensions 29 x 13 x 29mm
Release time 20ms
Coil power consumption 530mW
Operating temperature 40...70°C
Relay series G2R-1-S
Contact resistance 30mΩ
Switching capacity 2500VA, 300W
Terminal pitch 5.2mm
Coil current 21.8mA

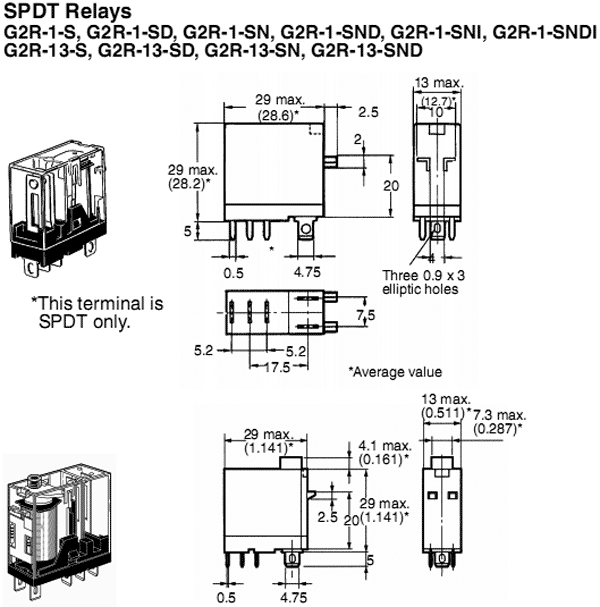

Dimensions  VIEW

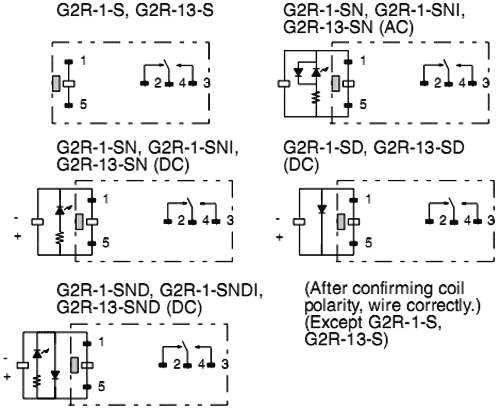

Output configuration  VIEW

Relay features:
  • LED
  • protection diode
Optional equipment:
  • overvoltage damping diode
  • LED indicator
Availability: On stock
