Relays PCB - Relay electromagnetic SPDT Ucoil 12VDC 8A/250VAC 5A/30VDC

Prod code: 13608
G6RN-1-12 PDF

G6RN-1-12
Price:  2.79 €
VAT:  0.67 €
Final price with tax:  3.46 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating 8 A / 250 VAC
DC contacts rating 5 A / 30 VDC
Contact current max. 8A
Switched voltage max 30V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 655Ù
Operate time 15ms
Body dimensions 28.5 x 20 x 15mm
Release time 5ms
Coil power consumption 220mW
Operating temperature 40...85°C
Relay series G6RN
Terminal pitch 3.2mm
Coil current 18.3mA

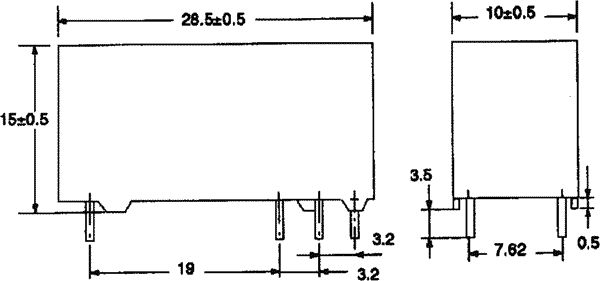

Dimensions  VIEW

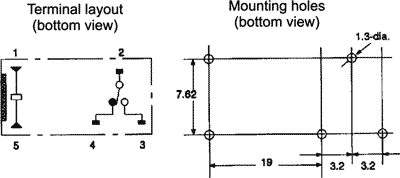

Output configuration  VIEW

Availability: With order
