Specifications |
| Manufacturer |
FORWARD INDUSTRIAL CO. |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPDT |
| Rated coil voltage |
12V DC |
| Contact current max. |
50A |
| DC contacts rating @R |
40A / 14V DC |
| Relay variant |
automotive |
| Coil voltage min. |
7.8V DC |
| Coil voltage max. |
15.6V DC |
| Coil resistance |
80Ω |
| Contact material |
AgSnO2 |
| Operating temperature |
-40...85°C |
| Body dimensions |
26.5x29x29mm |
| Mounting |
on panel, |
| Coil power consumption |
1.8W |
| Relay series |
FRC2 |
| Contact resistance |
30mΩ |
| Leads |
6,3x0,8mm connectors |
| Mechanical durability |
10000000cycles |
| Weight |
35g |
| Coil current |
150mA |
| Operate time |
7ms |
| Release time |
5ms |
| Electrical life |
100000cycles |
| Related items |
CS1-CW, |
| Switched voltage |
max. 75V DC |

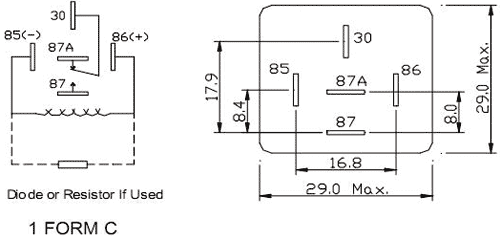

| Output configuration |
 VIEW |

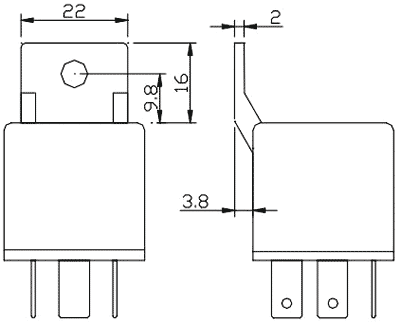

| Dimensions |
VIEW |
| |
|
