Specifications |
Manufacturer |
FUJITSU |
Type of relay |
electromagnetic |
Contacts configuration |
SPDT |
Rated coil voltage |
12V DC |
AC contacts rating @R |
16A / 250V AC |
DC contacts rating @R |
16A / 24V DC |
Contact current max. |
16A |
Switched voltage |
max. 300V DC, |
Relay variant |
miniature |
Mounting |
PCB |
Coil resistance |
360Ω |
Coil voltage min. |
8.4V DC |
Operate time |
15ms |
Body dimensions |
29x12.7x15.7mm |
Release time |
5ms |
Coil power consumption |
400mW |
Operating temperature |
-40...85°C |
Relay series |
FTR-K1 |
Contact resistance |
100mΩ |
Contact material |
AgSnO2 |
Terminal pitch |
5mm |

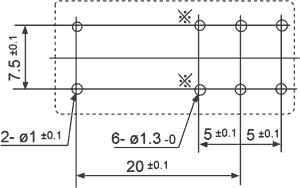

Dimensions |
VIEW |

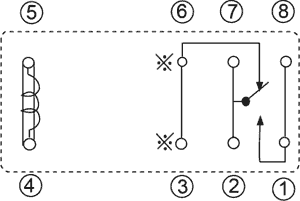

Schematic diagram |
VIEW |
Gross weight |
13.55 g |
|
|
