Ηλεκτρονόμος - Relay electromagnetic, SPDT, Ucoil 12VDC, 10A/250VAC, 10A/30VDC

Κωδικός: 35279

G2R-1-SN-12DC PDF

G2R-1-SN-12DC

Τιμή χωρίς ΦΠΑ:  6.84 €
Αξία ΦΠΑ:  1.64 €
Τελική με ΦΠΑ:  8.48 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 10A / 250V AC
DC contacts rating @R 10A / 30V DC
Contact current max. 10A
Switched voltage max. 125V DC,
Relay variant industrial,
Mounting socket
Relay series G2R-1-S
Operating temperature -40...70°C
Body dimensions 29x13x35.5mm
Coil resistance 275Ω
Operate time 15ms
Release time 5ms
Coil current 43.6mA
Relay features LED
Contact resistance 30mΩ
Coil power consumption 530mW
Switching capacity 300W,
Terminal pitch 5.2mm
Related items P2R-057P,

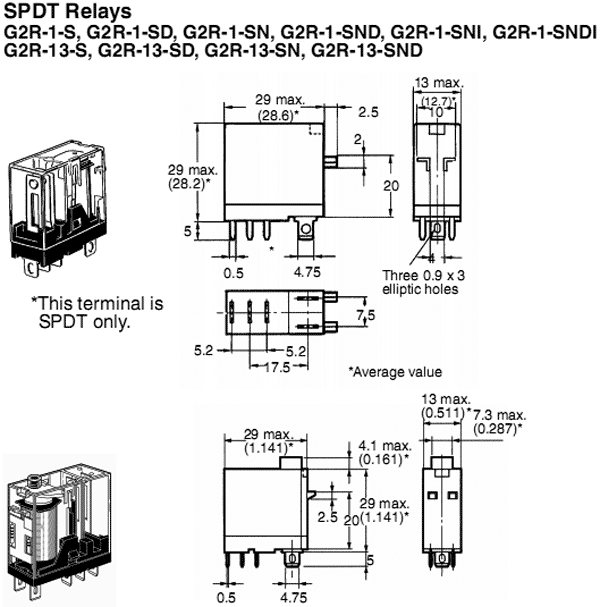

Dimensions  VIEW

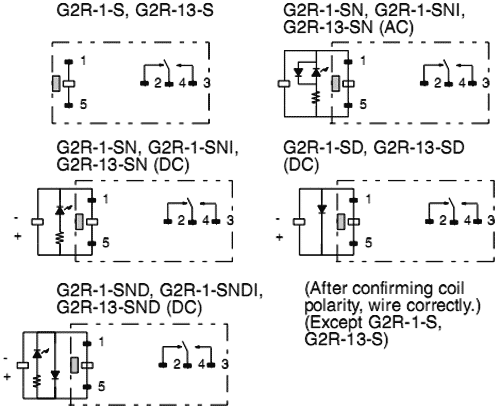

Output configuration  VIEW
Gross weight 19.82 g

Διαθεσιμότητα: Με παραγγελία
