Relays PCB - Relay electromagnetic, DPDT, Ucoil 24VDC, 8A/250VAC, 8A/30VDC

Prod code: 39626

46.52.9.024.004 PDF

46.52.9.024.004

Price:  6.62 €
VAT:  1.59 €
Final price with tax:  8.20 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 30V DC
Contact current max. 15A
Switched voltage max. 220V DC,   max. 440V AC
Relay variant industrial,   miniature
Mounting PCB,   socket
Coil voltage min. 17.5V DC
Coil voltage max. 26.4V DC
Relay series 46.52
Operating temperature -40...70°C
Body dimensions 29x12.4x32.8mm
Coil resistance 1.2kΩ
Mechanical durability 1000000 cycles
Relay features test button with blocking function
Contact material AgNi
Coil power consumption 500mW
Terminal pitch 5mm

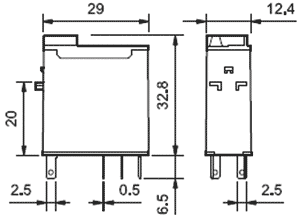

Dimensions  VIEW

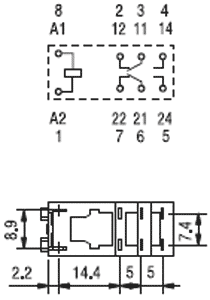

Output configuration  VIEW
Gross weight 19.4 g

Availability: With order
