Ηλεκτρονόμος πλακέτας - Relay electromagnetic, DPDT, Ucoil 24VDC, 0.5A/125VAC, 1A/30VDC

Κωδικός: 26147

S13-24V-2C PDF

S13-24V-2C

Τιμή χωρίς ΦΠΑ:  2.10 €
Αξία ΦΠΑ:  0.50 €
Τελική με ΦΠΑ:  2.60 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer SHORI ELECTRIC
Relay type electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating 0.5 A / 125 VAC
DC contacts rating 1 A / 30 VDC
Contact current max. 2A
Switched voltage max 125V AC, max 125V DC
Relay variant miniature
Mounting PCB
Coil resistance 2.89kΩ
Body dimensions 20.2 x 9.8 x 12mm
Coil power consumption 200mW
Mechanical durability 15000000cycles
Operating temperature 25...70°C
Weight 6g
Relay series S13
Contact resistance 100mΩ
Electrical life 100000cycles
Terminal pitch 5mm
Coil current 8.3mA

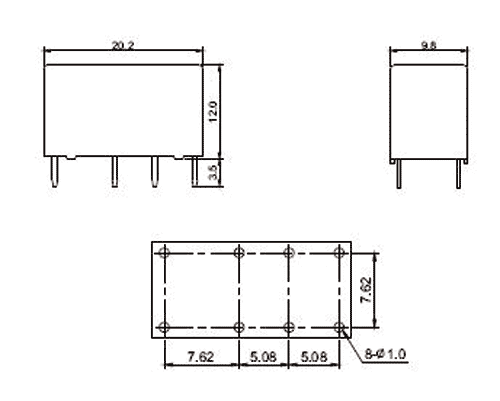

Dimensions  VIEW

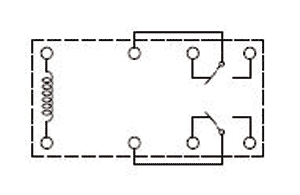

Schematic diagram  VIEW

Διαθεσιμότητα: Αμεσα
