Specifications |
| Manufacturer |
FINDER |
| Relay type |
electromagnetic |
| Contacts configuration |
SPDT |
| Rated coil voltage |
12V DC |
| AC contacts rating |
6 A / 250 VAC |
| DC contacts rating |
6 A / 30 VDC |
| Contact current max. |
10A |
| Switched voltage |
max 250V AC, max 220V DC |
| Relay variant |
interface |
| Mounting |
PCB, socket |
| Coil resistance |
840Ω |
| Coil voltage min. |
8.4V DC |
| Coil voltage max. |
18V DC |
| Body dimensions |
25 x 5 x 15mm |
| Coil power consumption |
170mW |
| Mechanical durability |
1000000cycles |
| Operating temperature |
40...85°C |
| Relay series |
34.51 |
| Contact material |
AgNi |
| Terminal pitch |
5mm |
| Coil current |
14.2mA |
| Associated items |
93.01.7.024, 93.01.7.060, 93.11, 93.51.3.125, 93.51.3.240 |

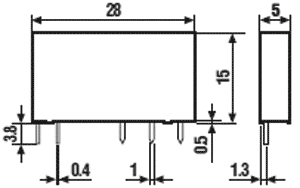

| Dimensions |
 VIEW |

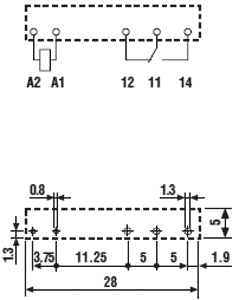

| Output configuration |
VIEW |
| |
|
