Specifications |
| Manufacturer |
TE Connectivity |
| Type of relay |
electromagnetic |
| Contacts configuration |
4PDT |
| Rated coil voltage |
12V DC |
| AC contacts rating @R |
6A / 250V AC |
| DC contacts rating @R |
6A / 30V DC |
| Contact current max. |
6A |
| Switched voltage |
max. 250V AC, max. 300V DC |
| Relay variant |
industrial |
| Mounting |
socket |
| Relay series |
PT |
| Operating temperature |
-40...70°C |
| Body dimensions |
28x22.5x30mm |
| Coil resistance |
192Ω |
| Contact material |
AgNi |
| Coil power consumption |
0.75W |
| Leads |
2,8x0,5mm connectors |
| Optional equipment |
test button with blocking function |
| Related items |
PT78740 |

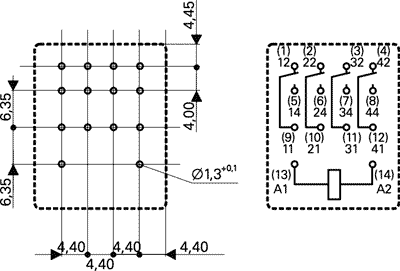

| Output configuration |
 VIEW |

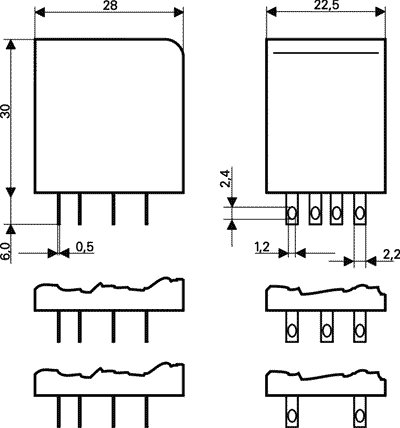

| Dimensions |
VIEW |
| Gross weight |
28.15 g |
| |
|
