Relays - Relay electromagnetic, 3PDT, Ucoil 24VDC, 10A/250VAC, 10A/30VDC

Prod code: 36863

55.33.9.024.001 PDF

55.33.9.024.001

Price:  9.41 €
VAT:  2.26 €
Final price with tax:  11.66 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration 3PDT
Rated coil voltage 24V DC
AC contacts rating @R 10A / 250V AC
DC contacts rating @R 10A / 30V DC
Contact current max. 20A
Switched voltage max. 220V DC,   max. 400V AC
Relay variant industrial
Mounting socket
Relay series 55.33
Operating temperature -40...85°C
Body dimensions 27.7x20.7x35.8mm
Coil resistance 600Ω
Coil current 40mA
Contact material AgNi
Coil power consumption 1W
Leads 2,8x0,5mm connectors
Related items 94.13,   94.03

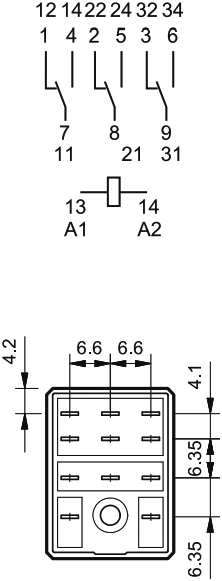

Dimensions  VIEW
Output configuration  VIEW
Gross weight 34.3 g

Availability: With order
