Τροφοδοτικό - Pwr sup.unit switched-mode, modular, 75.6W, 12VDC, 6.3A, 440g

Κωδικός: 26354

RSP-75-12 PDF

RSP-75-12

Τιμή χωρίς ΦΠΑ:  32.54 €
Αξία ΦΠΑ:  7.81 €
Τελική με ΦΠΑ:  40.34 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 75.6W
Output voltage 12V DC, 11.4...13.2V DC
Output current 6.3A
Supply voltage 85...264V AC, 120...370V DC
Weight 440g
Electrical connection terminal block
Protection overload, overheating, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 25...70°C
Body dimensions 159 x 97 x 30mm
Power supply/converter features rated parameters obtained at full load
Efficiency 85%
Series RSP-75
Case type 227A
Additional functions active PFC
Associated items TBC-05

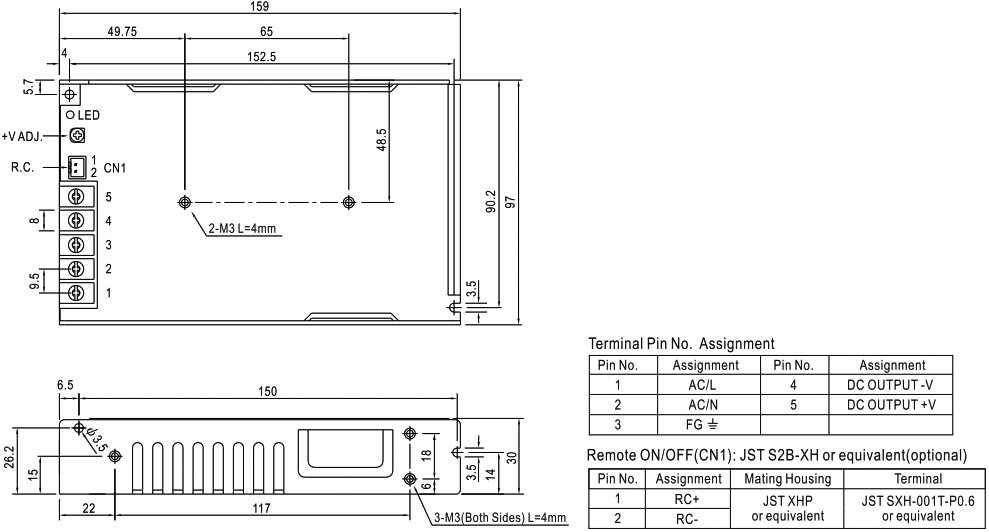

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
