power supplies - Pwr sup.unit switched-mode, modular, 15W, 5VDC, Uout 4.7÷5.5VDC

Prod code: 31517

TXM015-105 PDF

TXM015-105

Price:  21.32 €
VAT:  5.12 €
Final price with tax:  26.44 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 15W
Output voltage 5V DC, 4.7...5.5V DC
Output current 3A
Supply voltage 90...264V AC, 127...370V DC
Weight 165g
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 25...70°C
Body dimensions 79 x 51 x 28.8mm
Efficiency 78%
Series TXM

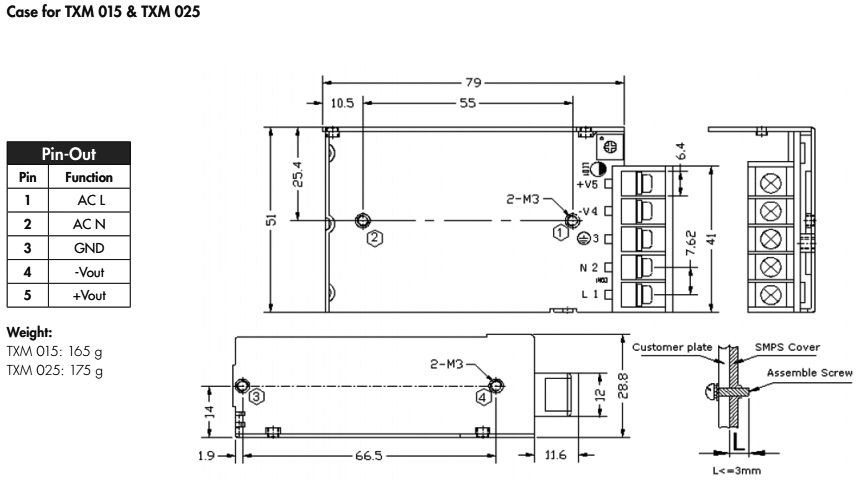

Dimensions  VIEW

Power supply/converter features:
  • no load power consumption <0,5W
  • rated parameters obtained at full load
Availability: With order
