Specifications |
Manufacturer |
MEAN WELL |
Pwr sup. unit type |
switched-mode |
Kind of power supply |
modular |
Power |
154.8W |
Output voltage |
36V DC, 28.8...39.6V DC |
Output current |
4.3A |
Supply voltage |
85...264V AC, 120...370V DC |
Weight |
610g |
Electrical connection |
terminal block |
Protection |
overload, overheating, voltage growth, short-circuit |
Mounting |
for building in |
Number of outputs |
1 |
Operating temperature |
40...70°C |
Body dimensions |
159 x 97 x 38mm |
Power supply/converter features |
rated parameters obtained at full load |
Efficiency |
89% |
Series |
HRP-150 |
Case type |
901 |
Additional functions |
active PFC |
Associated items |
DRL-02, DRP-03 |

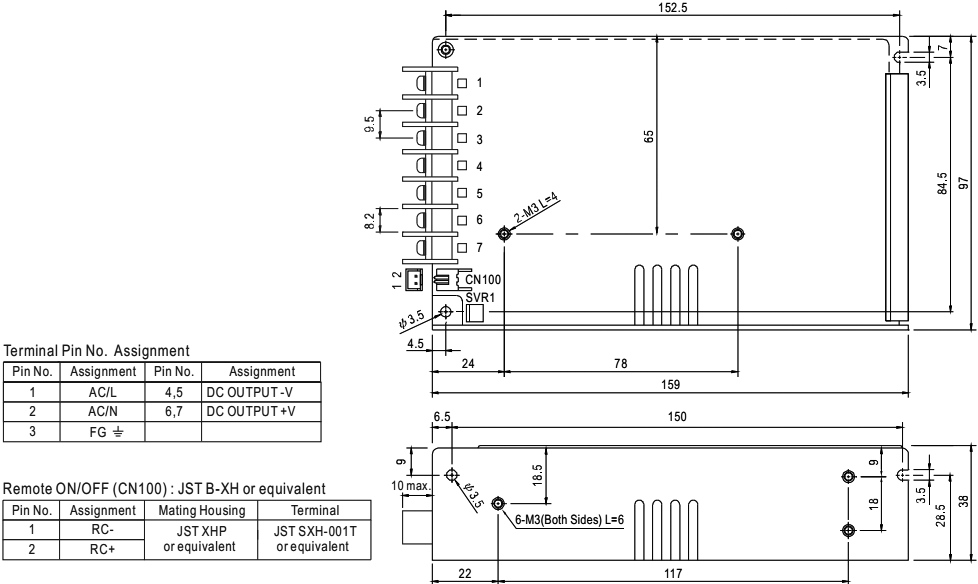

Dimensions |
VIEW |
|
|
