Pwr sup.unit switched-mode, LED, 8W, 12VDC, 0.67A, 90÷264VAC, IP42 - 5.73 EUR : acdcshop.gr


LED power supplies - Pwr sup.unit switched-mode, LED, 8W, 12VDC, 0.67A, 90÷264VAC, IP42	Prod code: 31360
PDF	APV-8-12

Click to enlarge Pwr sup.unit switched-mode, LED, 8W, 12VDC, 0.67A, 90÷264VAC, IP42

Price:	5.73 €
VAT:	1.37 €
Final price with tax:	7.10 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Application	LED
Kind of power supply	volatage source
Power	8W
Output voltage	12V DC
Output current	0.67A
Supply voltage	90...264V AC, 127...370V DC
IP rating	IP42
Body dimensions	60 x 30 x 22mm
Power supply/converter features	rated parameters obtained at full load
Protection	overload, voltage growth, short-circuit
Weight	90g
Operating temperature	30...70°C
Electrical connection	150mm wires
Number of outputs	1
Series	APV-8
Efficiency	80%

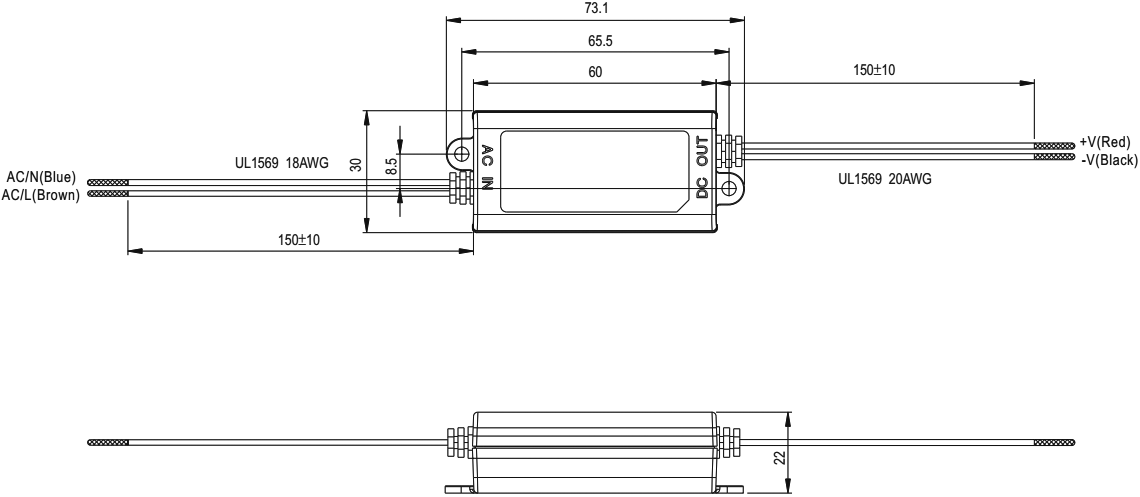

Dimensions	VIEW

Availability: On stock
