LED power supplies - Pwr sup.unit switched-mode, LED, 600.6W, 42VDC, 35.7÷44.1VDC

Prod code: 28776

HLG-600H-42A PDF

HLG-600H-42A

Price:  205.17 €
VAT:  49.24 €
Final price with tax:  254.41 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application LED
Kind of power supply CV+CC
Power 600.6W
Output voltage 42V DC, 35.7...44.1V DC
Output current 7.1...14.3A
Supply voltage 90...305V AC, 127...431V DC
Sealing IP65
Body dimensions 144 x 280 x 48.5mm
Power supply/converter features rated parameters obtained at full load
Protection overload, overheating, voltage growth, short-circuit
Weight 3.9kg
Operating temperature 40...70°C
Electrical connection 300mm wires
Number of outputs 1
Series HLG-600H
Efficiency 96%

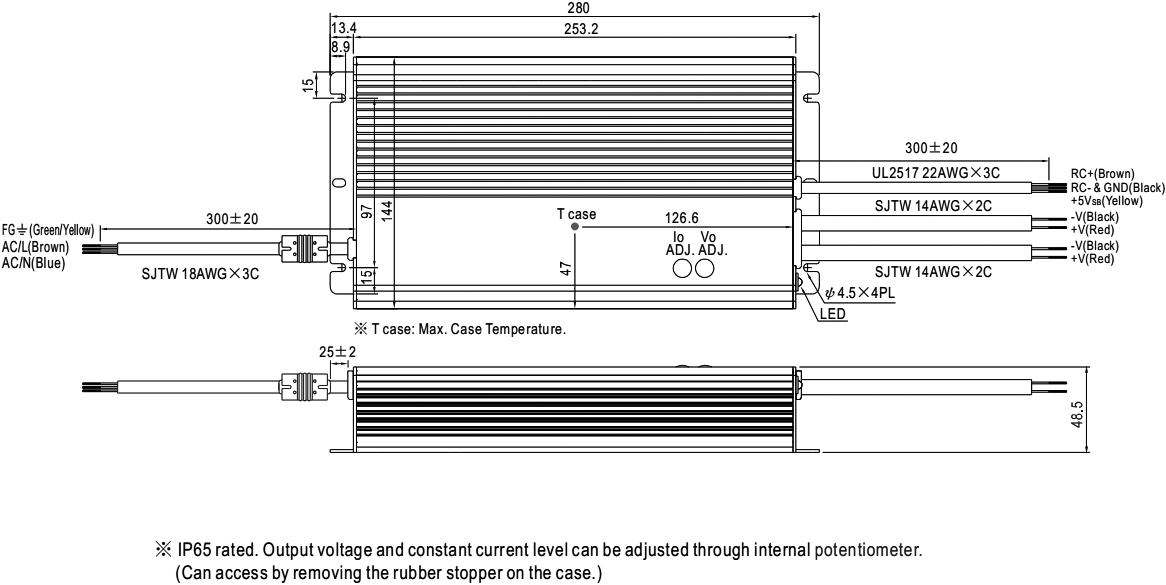

Dimensions  VIEW

Additional functions:
  • active PFC
  • adjustable output voltage and current level
Availability: With order
