Pwr sup.unit switched-mode, LED, 36W, 12VDC, 3A, 90÷264VAC, IP42 - 12.89 EUR : acdcshop.gr


LED power supplies - Pwr sup.unit switched-mode, LED, 36W, 12VDC, 3A, 90÷264VAC, IP42	Prod code: 31374
PDF	APV-35-12

Click to enlarge Pwr sup.unit switched-mode, LED, 36W, 12VDC, 3A, 90÷264VAC, IP42

Price:	12.89 €
VAT:	3.09 €
Final price with tax:	15.99 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Application	LED
Kind of power supply	volatage source
Power	36W
Output voltage	12V DC
Output current	3A
Supply voltage	90...264V AC, 127...370V DC
IP rating	IP42
Body dimensions	84 x 57 x 29.5mm
Power supply/converter features	rated parameters obtained at full load
Protection	overload, voltage growth, short-circuit
Weight	180g
Operating temperature	30...70°C
Electrical connection	150mm wires
Number of outputs	1
Series	APV-35
Efficiency	83%

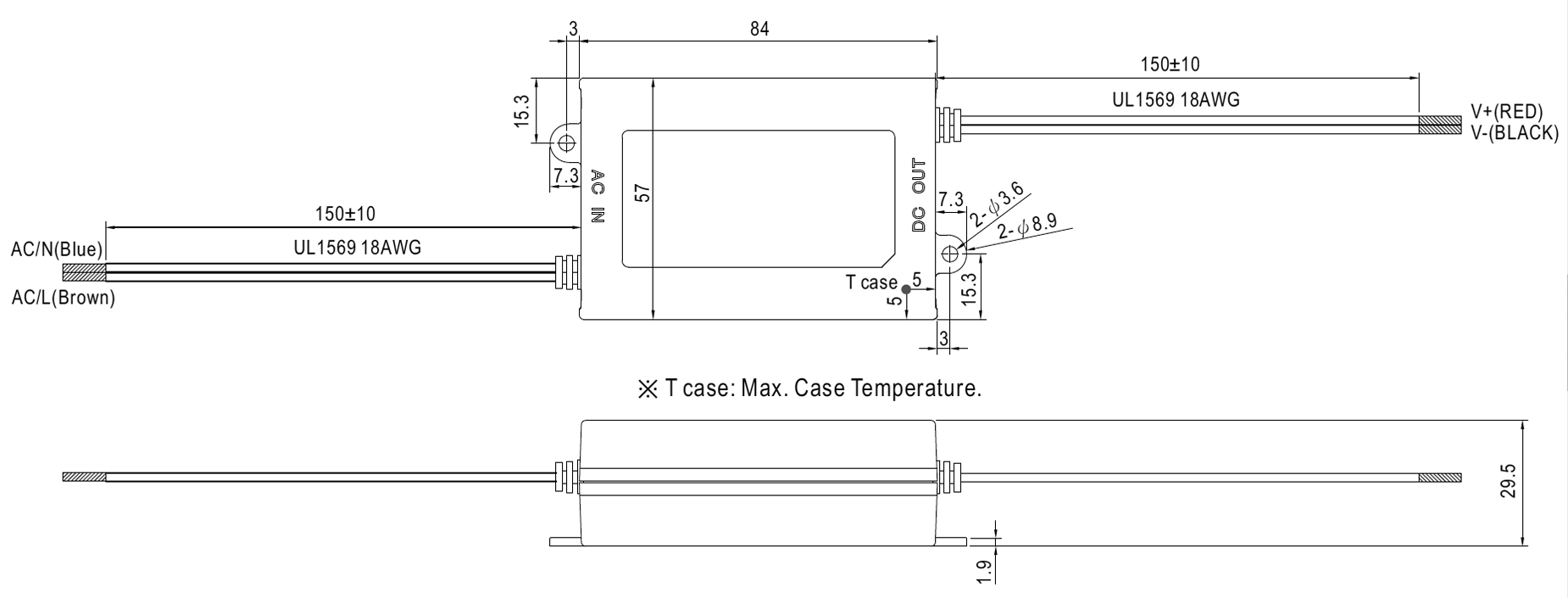

Dimensions	VIEW

Availability: With order
