LED power supplies - Pwr sup.unit switched-mode, LED, 25.38W, 54VDC, 0.47A, 90÷305VAC

Prod code: 31514

LPF-25D-54 PDF

LPF-25D-54

Price:  25.95 €
VAT:  6.23 €
Final price with tax:  32.18 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application LED
Kind of power supply current source
Power 25.38W
Output voltage 54V DC
Output current 0.47A
Supply voltage 90...305V AC, 127...431V DC
IP rating IP67
Body dimensions 148 x 40 x 32mm
Power supply/converter features rated parameters obtained at full load
Protection overload, overheating, voltage growth, short-circuit
Weight 360g
Operating temperature 35...70°C
Electrical connection 300mm wires
Number of outputs 1
Series LPF-25
Efficiency 86%

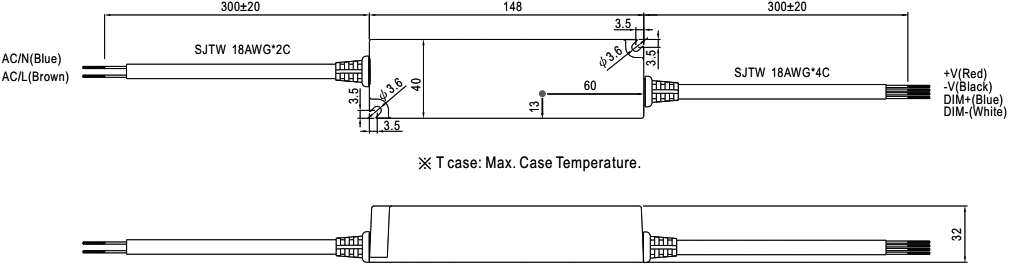

Dimensions  VIEW

Additional functions:
  • active PFC
  • dimming function 1-10VDC
  • PWM controlled dimming function
  • resistance dimming function
Availability: With order
