Pwr sup.unit switched-mode, LED, 120W, 30VDC, 4A, 90÷305VAC, IP67 - 53.19 EUR : acdcshop.gr


LED power supplies - Pwr sup.unit switched-mode, LED, 120W, 30VDC, 4A, 90÷305VAC, IP67	Prod code: 28726
PDF	HLG-120H-30B

Click to enlarge Pwr sup.unit switched-mode, LED, 120W, 30VDC, 4A, 90÷305VAC, IP67

Price:	53.19 €
VAT:	12.77 €
Final price with tax:	65.96 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Application	LED
Kind of power supply	CV+CC
Power	120W
Output voltage	30V DC
Output current	4A
Supply voltage	90...305V AC, 127...431V DC
Sealing	IP67
Body dimensions	220 x 68 x 38.8mm
Power supply/converter features	rated parameters obtained at full load
Protection	overload, overheating, voltage growth, short-circuit
Weight	1.12kg
Operating temperature	40...70°C
Electrical connection	300mm wires
Number of outputs	1
Series	HLG-120H
Efficiency	93%

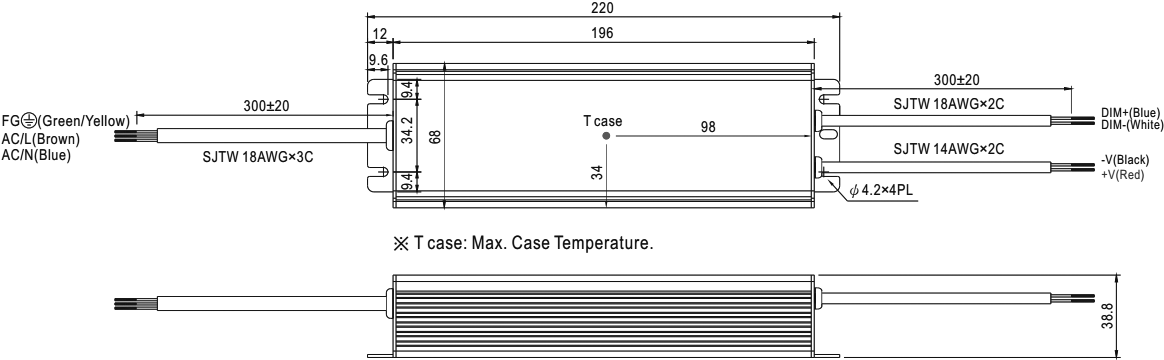

Dimensions	VIEW

Additional functions: active PFC dimming function 1-10VDC PWM controlled dimming function resistance dimming function

Availability: With order
