LED power supplies - Pwr sup.unit switched-mode, LED, 10W, 5VDC, 2A, 90÷264VAC, IP42

Prod code: 31362

APV-12-5 PDF

APV-12-5

Click to enlarge
Pwr sup.unit  switched-mode, LED, 10W, 5VDC, 2A, 90÷264VAC, IP42
Price:  6.80 €
VAT:  1.63 €
Final price with tax:  8.44 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application LED
Kind of power supply volatage source
Power 10W
Output voltage 5V DC
Output current 2A
Supply voltage 90...264V AC, 127...370V DC
IP rating IP42
Body dimensions 77 x 40 x 29mm
Power supply/converter features rated parameters obtained at full load
Protection overload, voltage growth, short-circuit
Weight 80g
Operating temperature 30...70°C
Electrical connection 150mm wires
Number of outputs 1
Series APV-12
Efficiency 76%

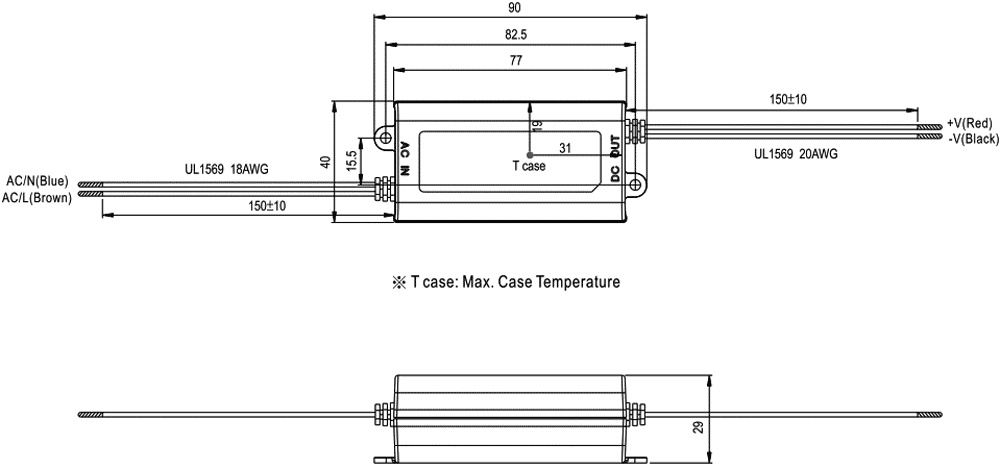

Dimensions  VIEW

Availability: With order
