Specifications |
Manufacturer |
MEAN WELL |
Pwr sup. unit type |
switched-mode |
Power |
76.8W |
Supply voltage |
127...370V DC, 90...264V AC |
Number of outputs |
1 |
Output voltage |
24V DC, 22...27V DC |
Output current |
3.2A |
Kind of power supply |
open |
Power supply/converter features |
rated parameters obtained at full load |
Efficiency |
83% |
Mounting |
for building in |
Protection |
overload, voltage growth, short-circuit |
Weight |
300g |
Body dimensions |
222 x 55 x 30mm |
Operating temperature |
20...70°C |
Electrical connection |
plug with 3,96mm pitch |
Series |
LPS-75 |
Associated items |
BVH-21T-P1.1, BXH-001T-P0.6, SVH-200BK22, VHR-5N, VHR-6N, XHP-2 |

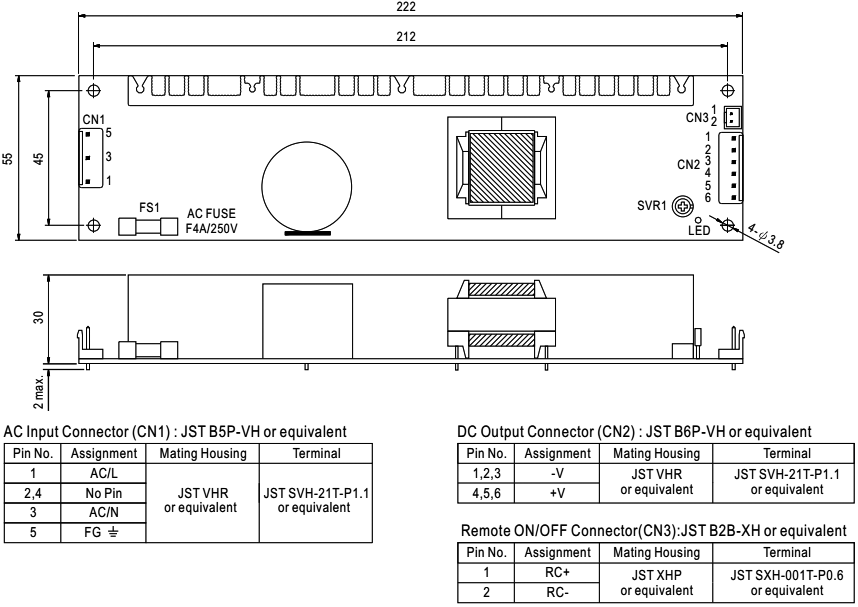

Dimensions |
VIEW |
|
|
