Open Frame power supply - Pwr sup.unit switched-mode, 15W, 120÷370VDC, 85÷264VAC, 12VDC

Prod code: 29038

PS-15-12 PDF

PS-15-12

Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 15W
Supply voltage 85...264V AC, 120...370V DC
Number of outputs 1
Output voltage 12V DC
Output current 1.25A
Kind of power supply open
Power supply/converter features rated parameters obtained at full load
Efficiency 77%
Mounting for building in
Protection overload, overheating, voltage growth, short-circuit
Weight 83g
Body dimensions 94 x 49 x 25mm
Operating temperature 10...60°C
Electrical connection plug with 3,96mm pitch
Series PS-15

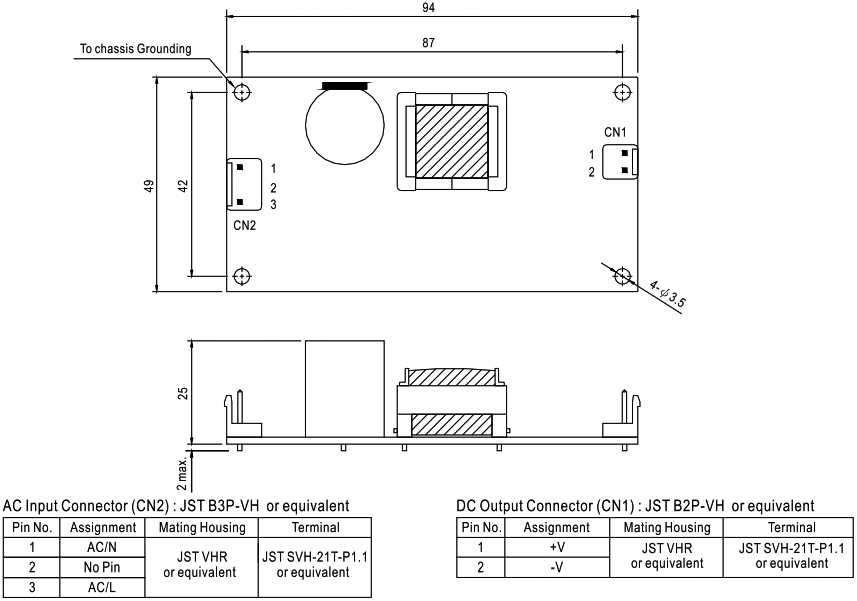

Dimensions  VIEW

Availability: Warning Long delivery time
