Din rail power supply - Pwr sup.unit pulse, 960W, 48VDC, 20A, 180÷264VAC, 254÷370VDC

Prod code: 16034

SDR-960-48 PDF

SDR-960-48

Price:  259.21 €
VAT:  62.21 €
Final price with tax:  321.42 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 960W
Output voltage 48V DC, 48...55V DC
Output current 20A
Supply voltage 254...370V DC, 180...264V AC
Electrical connection terminal block
Mounting DIN
Body dimensions 110 x 125.2 x 150mm
Weight 2.47kg
Number of outputs 1
Operating temperature 30...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 94%
Additional functions active PFC, output voltage correctness indication (NO contact)
Power supply/converter features rated parameters obtained at full load
Series SDR-960
Case type 214A

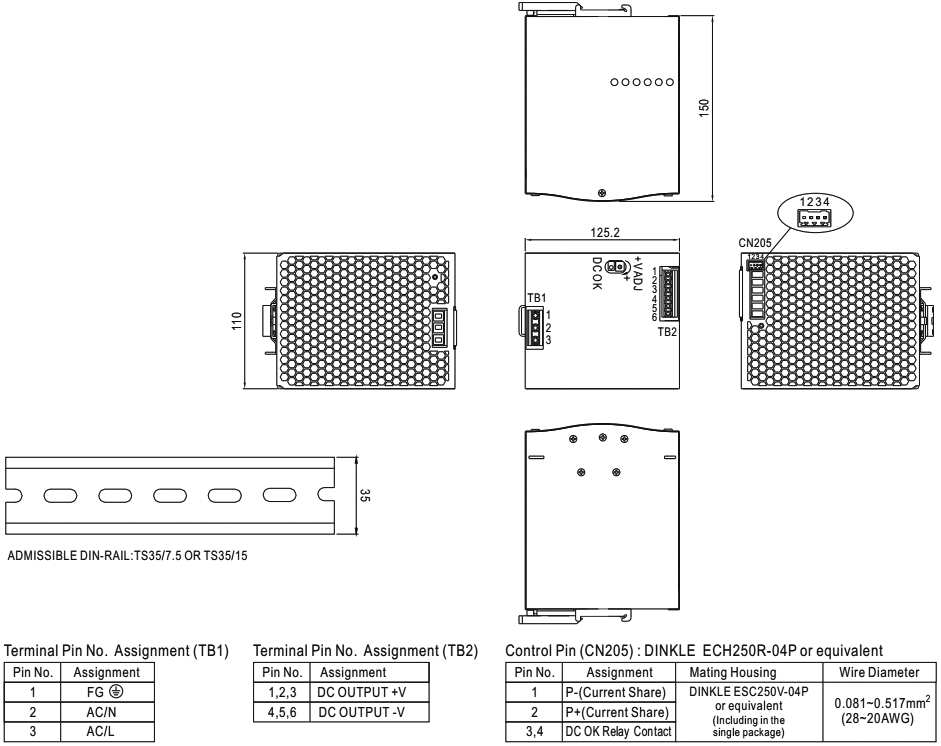

Dimensions  VIEW

Availability: With order
