Din rail power supply - Pwr sup.unit pulse, 960W, 24VDC, 40A, 480÷780VDC, 3x340÷550VAC

Prod code: 17289

TDR-960-24 PDF

TDR-960-24

Price:  247.35 €
VAT:  59.36 €
Final price with tax:  306.72 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 960W
Output voltage 24V DC
Output current 40A
Supply voltage 480...780V DC
Three-phase power supply voltages range 3 x 340...550V AC
Electrical connection terminal block
Mounting DIN
Body dimensions 110 x 125.2 x 150mm
Weight 2.47kg
Number of outputs 1
Operating temperature 30...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 94%
Additional functions active PFC, output voltage correctness indication (NO contact)
Power supply/converter features rated parameters obtained at full load
Series TDR-960
Case type 214A

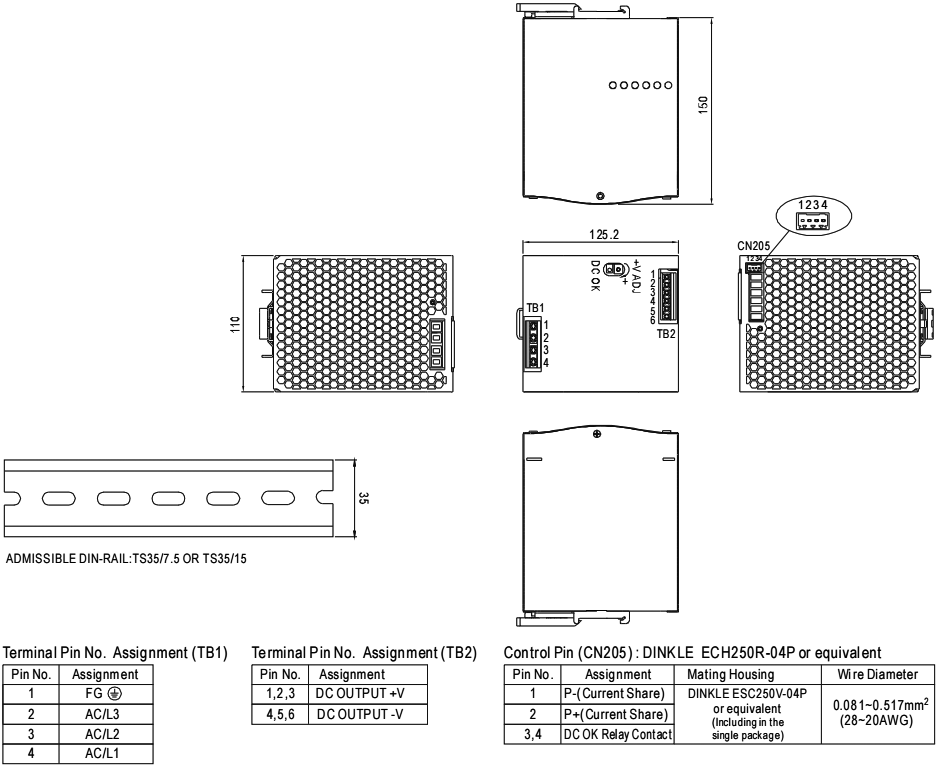

Dimensions  VIEW

Availability: With order
