Pwr sup.unit pulse, 80.7W, 5VDC, 12VDC, -5VDC, -12VDC, 7A, 3.1A - 33.54 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 80.7W, 5VDC, 12VDC, -5VDC, -12VDC, 7A, 3.1A	Prod code: 17270
PDF	RQ-85B

Click to enlarge Pwr sup.unit pulse, 80.7W, 5VDC, 12VDC, -5VDC, -12VDC, 7A, 3.1A

Price:	33.54 €
VAT:	8.05 €
Final price with tax:	41.59 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	80.7W
Output voltage	5V DC
Output voltage 2	12V DC
Output voltage 3	5V DC
Output voltage 4	12V DC
Output current	7 (2...10)A
Output current 2	3.1 (0.3...4)A
Output current 3	0.5 (0...1)A
Output current 4	0.5 (0...1)A
Supply voltage	88...264V AC, 125...373V DC
Weight	600g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	4
Operating temperature	20...70°C
Body dimensions	159 x 97 x 38mm
Power supply/converter features	rated parameters obtained at full load
Series	RQ-85
Efficiency	76%
Case type	901
Associated items	DRL-02, DRP-03A

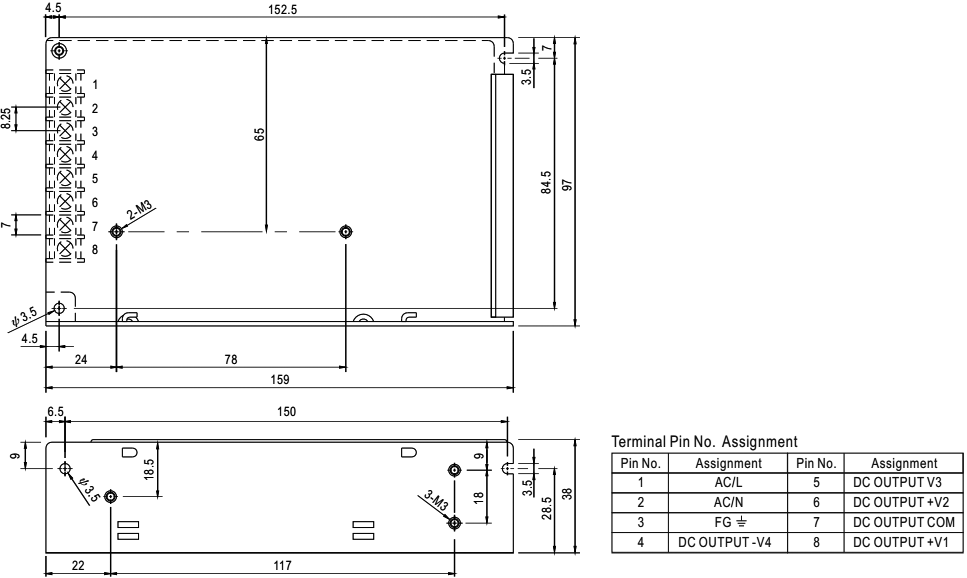

Dimensions	VIEW

Availability: With order
