Din rail power supply - Pwr sup.unit pulse, 76.8W, 48VDC, 1.6A, 88÷264VAC, 124÷370VDC

Prod code: 16032

SDR-75-48 PDF

SDR-75-48

Price:  35.25 €
VAT:  8.46 €
Final price with tax:  43.71 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 76.8W
Output voltage 48V DC, 48...55V DC
Output current 1.6A
Supply voltage 88...264V AC, 124...370V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 32 x 125.2 x 102mm
Weight 510g
Number of outputs 1
Operating temperature 30...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 90%
Power supply/converter features rated parameters obtained at full load
Series SDR-75

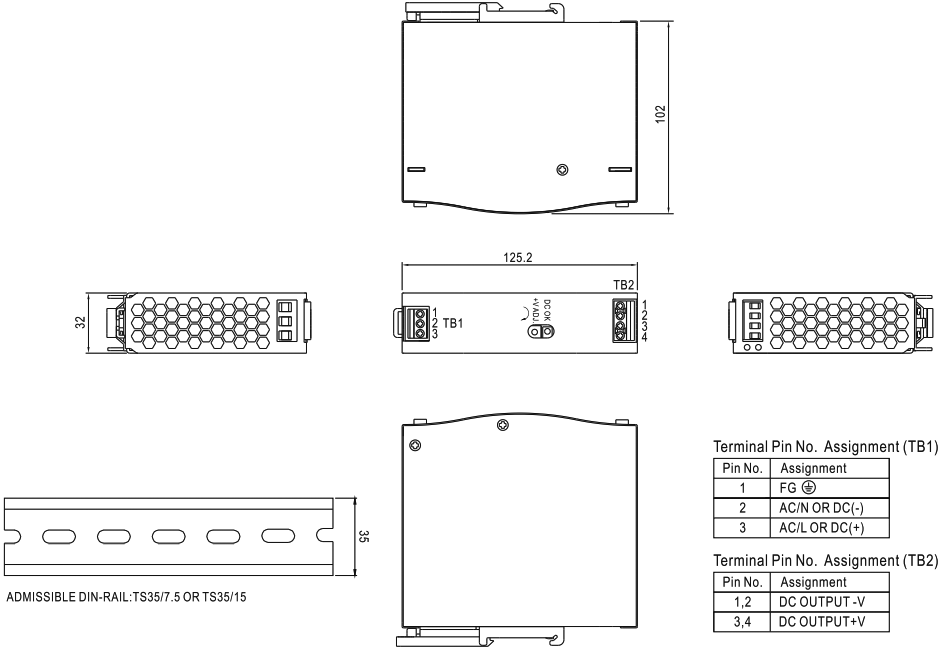

Dimensions  VIEW

Availability: With order
