Pwr sup.unit pulse, 5.52W, 24VDC, 0.23A, 85÷264VAC, 120÷370VDC


power supplies - Pwr sup.unit pulse, 5.52W, 24VDC, 0.23A, 85÷264VAC, 120÷370VDC	Prod code: 16091
PDF	IRM-05-24

Click to enlarge Pwr sup.unit pulse, 5.52W, 24VDC, 0.23A, 85÷264VAC, 120÷370VDC <sp

Price:	7.70 €
VAT:	1.85 €
Final price with tax:	9.55 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	5.52W
Output voltage	24V DC
Output current	0.23A
Supply voltage	120...370V DC, 85...264V AC
Weight	40g
Electrical connection	THT
Protection	overload, voltage growth, short-circuit
Mounting	PCB
Number of outputs	1
Operating temperature	30...70°C
Body dimensions	45.7 x 25.4 x 21.5mm
Series	IRM
Efficiency	77%

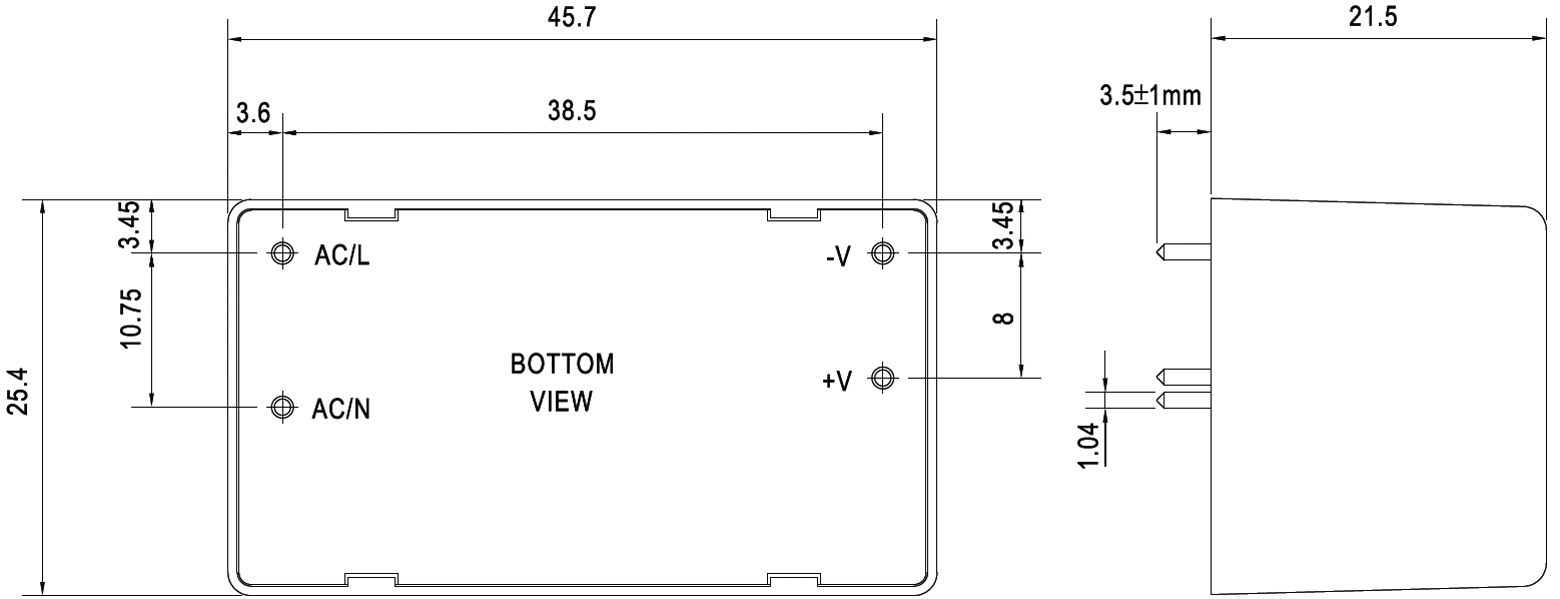

Dimensions	VIEW

Power supply/converter features: no load power consumption <0,1W rated parameters obtained at full load

Availability: With order
