power supplies - Pwr sup.unit pulse, 53.6W, 5VDC, 24VDC, 4A, 1.4A, 88÷264VAC, 410g

Prod code: 17251

RD-50B PDF

RD-50B

Price:  18.13 €
VAT:  4.35 €
Final price with tax:  22.48 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 53.6W
Output voltage 5V DC
Output voltage 2 24V DC
Output current 4 (0.3...6)A
Output current 2 1.4 (0.2...2)A
Supply voltage 88...264V AC, 125...373V DC
Weight 410g
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 2
Operating temperature 25...70°C
Body dimensions 99 x 97 x 36mm
Power supply/converter features rated parameters obtained at full load
Series RD-50
Efficiency 80%
Case type 905B
Associated items DRL-01, DRP-03A

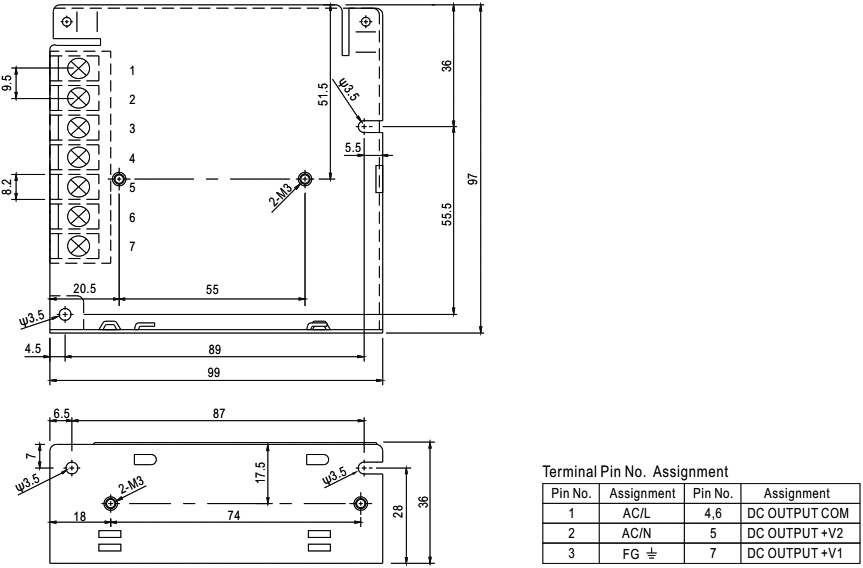

Dimensions  VIEW

Availability: With order
